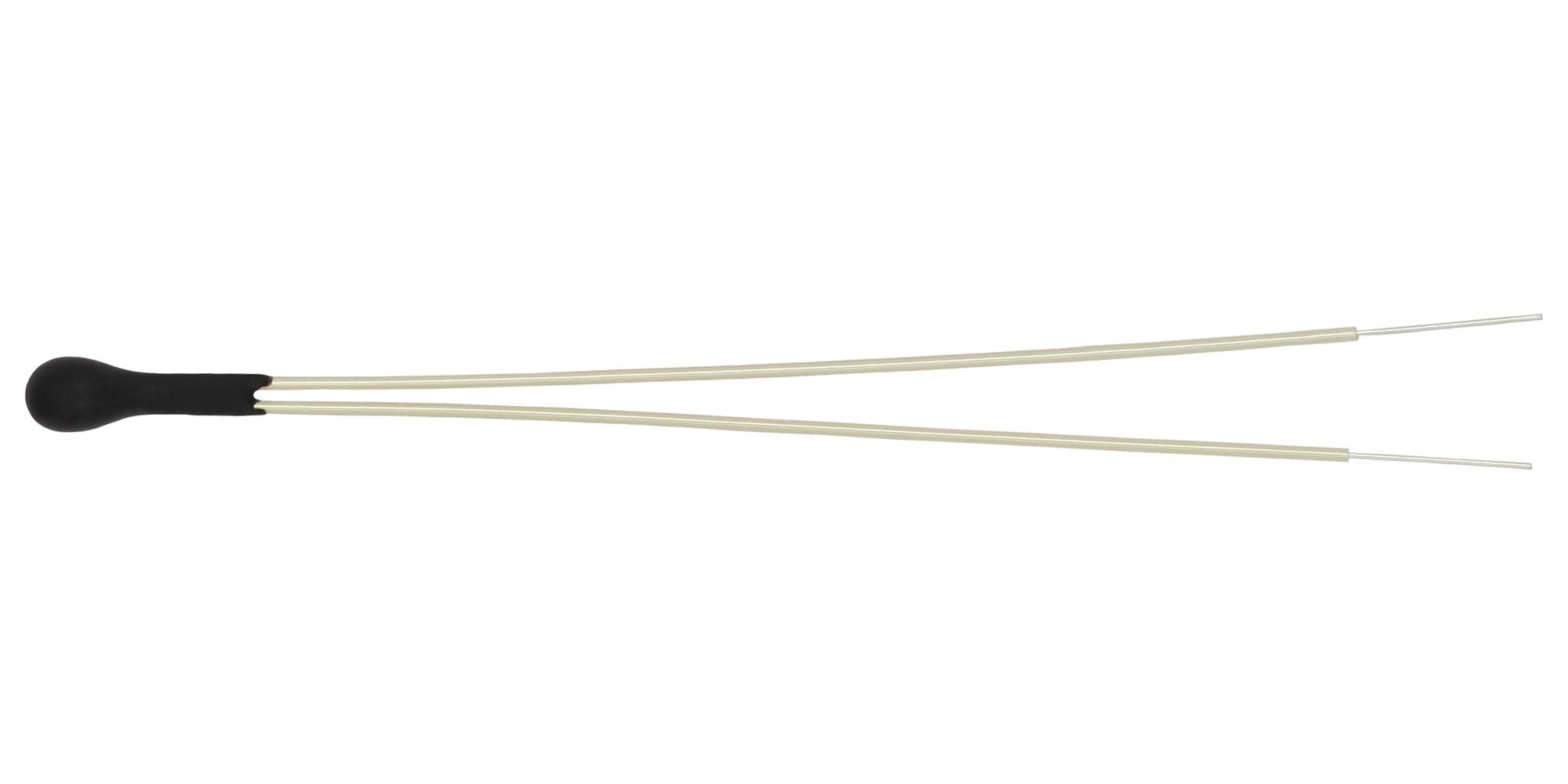

Vishay NTCLE350E4103JLB0 Temperature Sensor
The NTCLE350 is a high-temperature insulated lead thermistor with PEEK-insulated NiFe alloy wire, suitable for automotive, engine, and motor thermal sensing. Designed with advanced NTC ceramic technology, it provides a resistance of 10,000 ohms at 25°C and operates reliably from -55°C to +185°C. Its small diameter of 2.4 mm assures fast response times and high sensitivity. Ideal for exhaust gas recirculation, oil temperature, and liquid-cooled systems, it withstands harsh environments and processes like potting and molding, making it a dependable choice for demanding industrial and automotive applications.
Vishay NTCLE350E4103JLB0 Temperature Sensor Specifications:
- Resistance Value at 25°C: 10,000 Ω
- Tolerance: 1, 2, 3, 5 %
- Resistance at 25°C: 10kΩ
- Temperature Range: -55°C to +185°C
- Response Time (63.2%) in Still Air: 6 s
- Material: PEEK-insulated NiFe alloy leads with epoxy coating
- Maximum Power Dissipation: 100 mW at 55°C
- Dielectric Withstanding Voltage: 1000 Vac
- Insulation Resistance: 100 MΩ at 500 Vac
- Size: Diameter up to 2.4 mm
- Qualification: AEC-Q200
- Environmental Resistance: No to noxious gases, acids, damp conditions
- Mounting: Radial, suitable for all standard processes
Buy the Vishay Series NTCLE350 Temperature Sensor: NTCLE350E4103JLB0
Order the Vishay NTCLE350E4103JLB0 thermistor online today to ensure reliable temperature measurement in demanding environments. Designed with advanced ceramic technology and insulated NiFe leads, it offers precise readings from -55°C to 185°C. Its compact 2.4 mm diameter ensures quick response times and high sensitivity, ideal for automotive exhaust gas recirculation, oil, and liquid-cooled systems. Manufactured to meet automotive grade standards (AEC-Q200), this thermistor is perfect for industrial, motor, and HVAC applications. Easy to install, durable, and resistant to harsh conditions, it's your trusted solution for accurate temperature monitoring.
Get Vishay NTCLE350E4103JLB0 today—built for precision and long-lasting durability in automotive and industrial temperature sensing.
Frequently Asked Questions
Where can I buy Vishay NTCLE350E4103JLB0?
You can click on the BUY or RFQ button to purchase NTCLE350E4103JLB0 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part NTCLE350E4103JLB0?
You can download the NTCLE350E4103JLB0 datasheet or visit the Vishay website for support.
Who is the manufacturer of NTCLE350E4103JLB0?
Vishay
