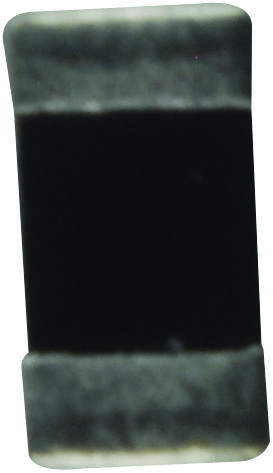

Vishay NTCS0603E3104FXT Temperature Sensing Thermistor
This glass-protected SMD NTC thermistor is ideal for precise temperature sensing, protection, and compensation across automotive, industrial, and telecom applications. It features NiSn terminations, is suitable for wave or reflow soldering with a maximum temperature of 260°C, and complies with RoHS standards. The device is AEC-Q200 qualified for automotive stability, UL recognized, and comes in an 0603 size with a resistance value of 100K at 25°C, making it a reliable choice for temperature control and monitoring in harsh environments.
Vishay NTCS0603E3104FXT Temperature Sensing Thermistor Specifications:
- Size: 0603 (1608)
- Resistance at 25°C: 100KΩ
- Resistance tolerance: 1%
- Temperature coefficient: Negative TCR ranging from -7%/K at -40°C to -2%/K at 150°C
- Maximum dissipation at 25°C: 125mW
- Operating temperature range: -40°C to +150°C
- Material: Fully glass coated with NiSn terminations
- Soldering: Suitable for wave or reflow soldering, max temperature 260°C for 40 seconds
- Compliance: RoHS, UL recognized, AEC-Q200 qualification
- Weight: approximately 0.006 g
Buy the Vishay Series NTC Thermistor: NTCS0603E3104FXT
Purchase the Vishay NTCS0603E3104FXT today for reliable temperature sensing and protection in automotive, industrial, and telecom systems. This high-precision, glass-coated NTC thermistor features NiSn terminations, making it suitable for wave or reflow soldering processes with a maximum temperature of 260°C. Its compact 0603 size and resistance of 100K at 25°C ensure excellent performance and stability across a wide temperature range. Ideal for temperature monitoring, protection circuits, and compensation applications, it guarantees durability and compliance with industry standards.
Get Vishay NTCS0603E3104FXT today—built for precision temperature sensing and long-lasting durability.
Frequently Asked Questions
Where can I buy Vishay NTCS0603E3104FXT?
You can click on the BUY or RFQ button to purchase NTCS0603E3104FXT from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part NTCS0603E3104FXT?
You can download the NTCS0603E3104FXT datasheet or visit the Vishay website for support.
Who is the manufacturer of NTCS0603E3104FXT?
Vishay
