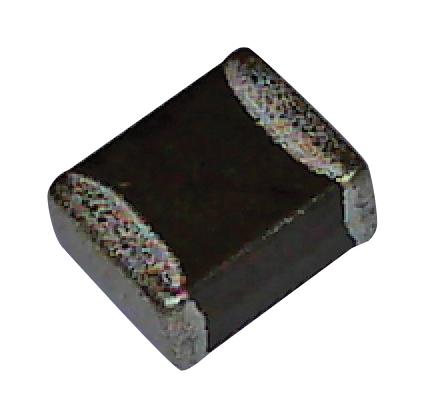

Vishay NTCS0603E3223JMT SMD Thermistor
The NTCS0603E3223JMT is a glass-protected SMD thermistor with a resistance of 22K at 25°C, designed for temperature sensing, protection, and compensation in automotive, industrial, telecom, and consumer applications. It features a -7%/K TCR from -40°C to 150°C, 1% tolerance, RoHS-compliant NiSn terminations, and is suitable for wave or reflow soldering up to 260°C. Compact size 0603, with glass coating, provides reliable thermal response with a dissipation factor of 3.0 mW/K, ideal for power supplies, battery chargers, and LCD compensation.
Vishay NTCS0603E3223JMT SMD Thermistor Specifications:
- Resistance at 25°C: 22K
- TCR: -7%/K from -40°C to 150°C
- Tolerance on Resistance: 1%
- Size: 0603 (1608)
- Maximum dissipation at 25°C: 3.0 mW
- Operating temperature range: -40°C to +150°C
- Glass coating for protection
- RoHS-compliant NiSn terminations
- Suitable for wave and reflow soldering up to 260°C for 40 seconds
- Material: Fully glass coated and protected, plated NiSn terminations
- Weight: approx. 0.006 g
- Shelf life and storage conditions recommended as per datasheet
- Packaging: 8 mm punched paper tape on reel, 4000 units
Buy the Vishay 22K NTCS0603E3223JMT – Reliable NTC Thermistor for Industrial Applications
Order the Vishay NTCS0603E3223JMT SMD thermistor online today and benefit from its robust glass coating, accurate 22K resistance at 25°C, and TCR of -7%/K. Ideal for temperature compensation, protection, and sensing in automotive, industrial, telecom, and consumer electronics, this component offers excellent stability, RoHS compliance, and suitability for wave or reflow soldering up to 260°C. Secure reliable thermal management in your designs with this compact, high-quality thermistor made for demanding applications.
Buy Vishay NTCS0603E3223JMT now and experience unmatched reliability and high-precision temperature sensing in industrial and automotive environments.
Frequently Asked Questions
Where can I buy Vishay NTCS0603E3223JMT?
You can click on the BUY or RFQ button to purchase NTCS0603E3223JMT from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part NTCS0603E3223JMT?
You can download the NTCS0603E3223JMT datasheet or visit the Vishay website for support.
Who is the manufacturer of NTCS0603E3223JMT?
Vishay
