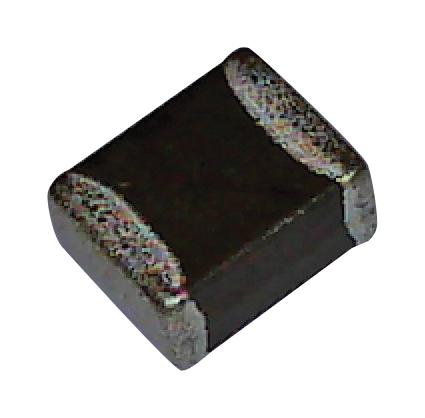

Vishay NTCS0603E3272JMT Temperature Sensor
Vishay BCcomponents offers SMD 0603, fully glass-coated NTC thermistors designed for temperature sensing, protection, and compensation in automotive, industrial, telecom, and consumer applications. These thermistors feature a negative temperature coefficient with resistance values ranging from 2.0K to 100K at 25°C, with tolerances down to 1%. Operating in temperatures from -40°C to +150°C, they are suitable for wave or reflow soldering, ensuring reliable connections. Ideal for battery chargers, power supplies, LCD compensation, and in-car entertainment, these compact thermistors provide accurate thermal sensing with low dissipation and quick response times.
Vishay NTCS0603E3272JMT Temperature Sensor Specifications:
- Resistance Values: 2.0K to 100K at 25°C
- Resistance Tolerance: down to 1%
- Temperature Range: -40°C to +150°C
- Dissipation: 125 mW at 25°C
- Thermal Time Constant: 8 s
- Material: Fully glass-coated, RoHS compliant
- Size: 0603 chip
- Soldering: Suitable for wave and reflow soldering, max temperature 260°C for 40 s
- Packaging: 8 mm punched paper tape on reel
- Meets IEC 60068-2-58 standards for solderability and resistance to soldering heat
- Maximum solder land length: 4.0 mm, pitch: 1.55 mm
- RoHS compliant, cUL recognized, AEC-Q200 qualified
Buy the Vishay NTCS0603E3272JMT – Reliable Temperature Sensor for Industrial Applications
Purchase Vishay NTCS0603E3272JMT thermistors online now—these high-quality, glass-coated NTC devices ensure precise temperature measurement and reliable performance in automotive, industrial, and consumer electronics. Designed to operate from -40°C to +150°C, they are suitable for wave or reflow soldering, making assembly easy and dependable. With resistance values from 2.0K to 100K and tolerances down to 1%, these thermistors provide accurate thermal protection, power regulation, and compensation. Order now for consistent, long-lasting thermal sensing in your latest projects.
Get Vishay NTCS0603E3272JMT today—engineered for precise thermal sensing and durable performance in your industrial designs.
Frequently Asked Questions
Where can I buy Vishay NTCS0603E3272JMT?
You can click on the BUY or RFQ button to purchase NTCS0603E3272JMT from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part NTCS0603E3272JMT?
You can download the NTCS0603E3272JMT datasheet or visit the Vishay website for support.
Who is the manufacturer of NTCS0603E3272JMT?
Vishay
