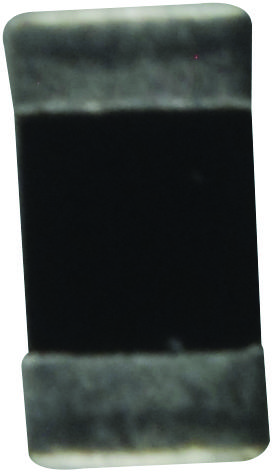

Vishay NTCS0805E3103FLT SMD Glass Protected Thermistor
This high-demand SMD chip thermistor features a resistance of 3.10K at 25°C, with a TCR from -6%/K at -40°C to -2%/K at 150°C. It is fully glass protected, RoHS compliant, and suitable for wave or reflow soldering with a maximum temperature of 260°C for 40 seconds. The device operates across a temperature range from -40°C to +150°C, making it ideal for battery chargers, power supplies, office equipment, and automotive applications. Its compact 0805 size and NiSn terminations ensure reliable performance and easy integration into electronic circuits.
Vishay NTCS0805E3103FLT SMD Glass Protected Thermistor Specifications:
- Resistance value at 25 °C: 3.10K
- Resistance tolerance: ±1%, ±3%, ±5%
- Temperature range: -40°C to +150°C
- Max dissipation at 25 °C: 210 mW
- Thermal time constant: 10 seconds
- Dissipation factor: 3.5 mW/K
- Material: Glass coated
- Size: 0805 (2.0 x 1.25 mm)
- Operating temperature: -40°C to +150°C
- Soldering: Suitable for wave or reflow soldering, max 260°C for 40s
- Package: Tape of 4000 units
- Certifications: RoHS compliant
- Application: Battery chargers, power supplies, automotive, industrial, consumer electronics
Buy the Buy Vishay BCcomponents NTC Thermistor Part Number NTCS0805E3103FLT Online
Order the Vishay BCcomponents SMD glass protected thermistor NTCS0805E3103FLT online today. Perfect for precision temperature sensing in automotive, industrial, and consumer electronics. This high-quality component offers excellent stability, RoHS compliance, and easy reflow or wave soldering compatibility. Its compact size and robust glass coating ensure durability and reliable performance across a wide temperature range from -40°C to +150°C. Secure fast delivery and enhance your electronic designs today with this essential thermistor suited for power supplies, battery management, and more.
Buy Vishay NTCS0805E3103FLT now and experience reliable temperature sensing in automotive, industrial, and consumer electronics.
Frequently Asked Questions
Where can I buy Vishay NTCS0805E3103FLT?
You can click on the BUY or RFQ button to purchase NTCS0805E3103FLT from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part NTCS0805E3103FLT?
You can download the NTCS0805E3103FLT datasheet or visit the Vishay website for support.
Who is the manufacturer of NTCS0805E3103FLT?
Vishay
