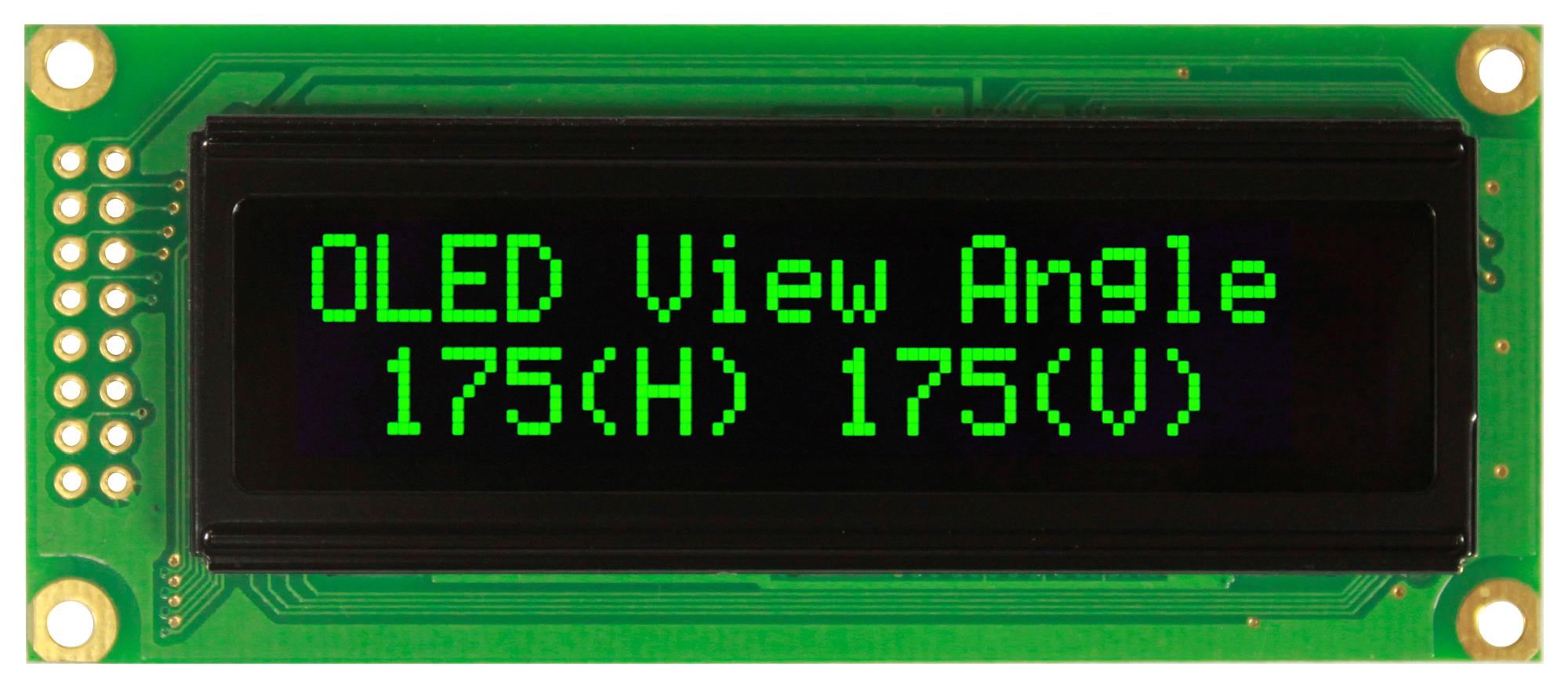

Vishay O016N002CGPP5N0000 OLED Display Module
This green-emitting 16x2 character OLED display module features a built-in controller. It operates at 5V with a 1/16 duty cycle and has overall dimensions of 85mm x 36mm x 10mm. The viewing area measures 66mm x 16mm, with an active display area of 56.95mm x 11.85mm. Each dot is 0.55mm x 0.65mm with a dot pitch of 0.6mm x 0.7mm. The module includes mounting holes spaced at 80mm x 31mm and utilizes a polarized passive matrix display. It is suitable for applications in imaging, video, and vision systems. Note: Due to high market demand, lead times may be extended, and delivery dates are subject to fluctuation. Discounts are not applicable.
Vishay O016N002CGPP5N0000 OLED Display Module Specifications:
- Display format: 16 x 2 characters
- Module dimension: 85mm x 36mm x 10mm
- Viewing area: 66mm x 16mm
- Active area: 56.95mm x 11.85mm
- Dot size: 0.55mm x 0.65mm
- Dot pitch: 0.6mm x 0.7mm
- Supply voltage: 5V
- Duty cycle: 1/16
- Temperature Rating: Not specified
- Operation: Polarized passive matrix
- Interface: Not specified
- Mounting holes: 80mm x 31mm
- Display color: Green
- Power supply: +5 V, optional +3 V
Buy the Vishay O015N002CGPP5N0000 – Reliable OLED Display for Industrial Applications
Order the Vishay OLED-016N002C online today and enhance your imaging, video, and vision system projects with this reliable 16x2 character OLED display module. Its built-in controller and polarized passive matrix technology provide clear visibility and easy integration, operating at 5V with a 1/16 duty cycle. The compact dimensions of 85mm x 36mm x 10mm, along with mounting holes spaced at 80mm x 31mm, allow flexible installation in various applications. Perfect for industrial, automation, and consumer electronics, this display is designed for durability and performance. Secure yours now for efficient operation, quick deployment, and consistent results.
Get Vishay OLED-016N002C today—built for precision and long-lasting durability in your imaging and vision projects.
