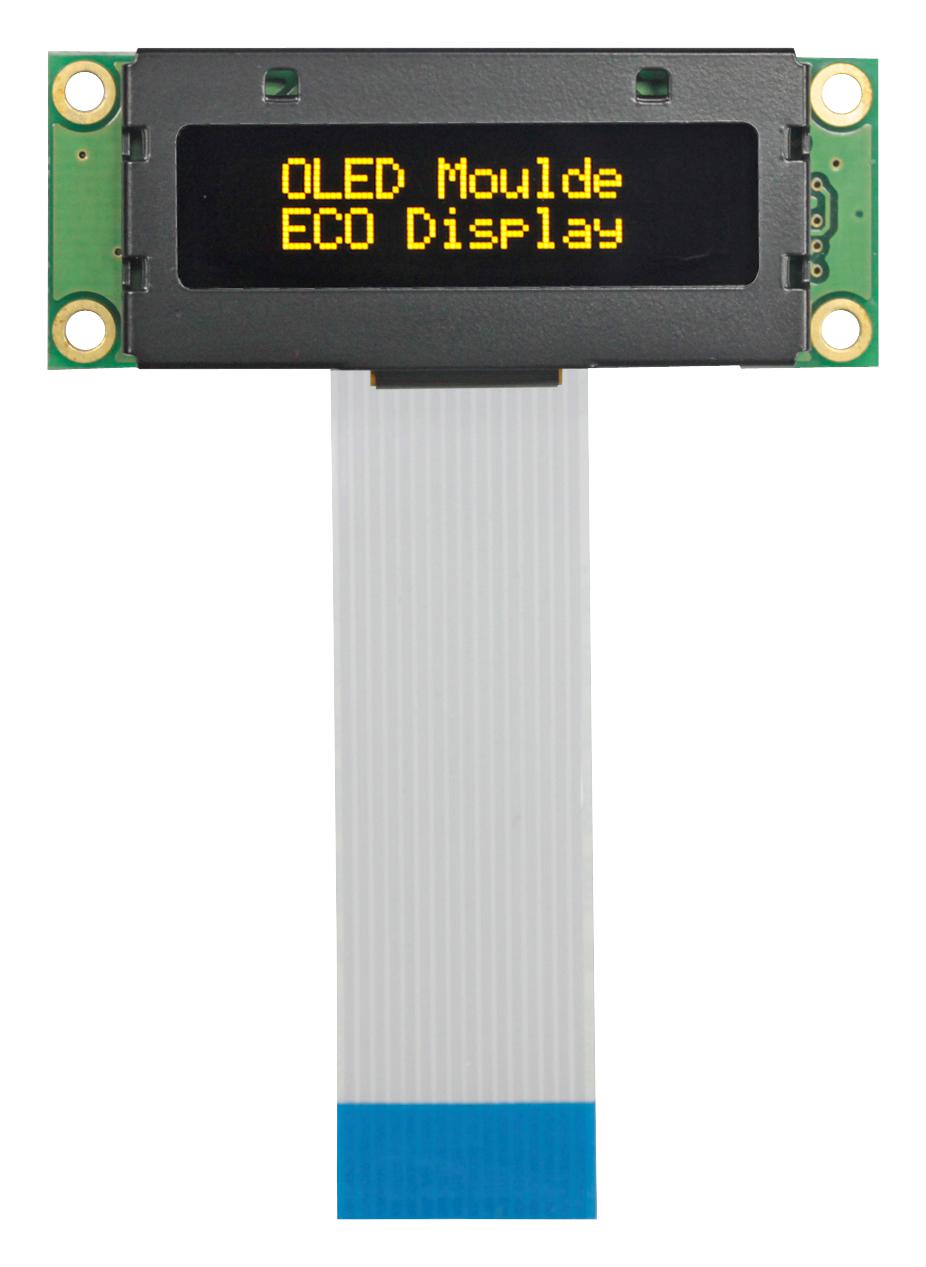

Vishay O016O002BLPP5N0000 OLED Graphic Display
The display module from Vishay is a yellow-emitting 16x2 graphic OLED display with a compact size of 53.0 x 20.0 x 7.6 mm. It features a polarized, passive matrix design optimized for high contrast, with a viewing angle of 160 degrees and an active area of 30.69 x 5.94 mm. Operating at 5V, it offers reliable performance with a typical luminance of 180 cd/m², long lifetime of 50,000 hours, and excellent environmental durability, making it perfect for embedded systems, instrumentation, and portable devices.
Vishay O016O002BLPP5N0000 OLED Graphic Display Specifications:
- Display type: OLED, Graphic, Passive Matrix
- Size: 53.0 x 20.0 x 7.6 mm
- View Area: 36.0 x 10.0 mm
- Active Area: 30.69 x 5.94 mm
- Number of Characters: 16 characters x 2 lines
- Dot Size: 0.30 x 0.32 mm
- Dot Pitch: 0.34 x 0.36 mm
- Character Size: 1.67 x 2.84 mm
- Character Pitch: 1.94 x 3.11 mm
- Display Color: Yellow
- Driver Voltage: 5.0 V
- Viewing Angle: 160 degrees
- Brightness: Up to 180 cd/m²
- Lifespan: 50,000 hours
- Temperature Range: Operating -40°C to +80°C, Storage -40°C to +80°C
- Module conforms to safety and environmental standards
- Panel includes polarizer, optional touch panel, and high contrast features
Buy the VISHAY Series OLED Graphic Display: O016O002BLPP5N0000
Order the Vishay OLED graphic display module O016O002BLPP5N0000 online today to enhance your embedded system project or portable device with reliable performance, long lifespan, and excellent visual clarity. Its compact size, 5V operation, and wide viewing angle make it perfect for various applications such as instrumentation, medical devices, and industrial equipment. Enjoy fast delivery, great support, and unbeatable quality by purchasing directly from our online store today!
Buy Vishay OLED graphic display module O016O002BLPP5N0000 now and experience unmatched reliability and high contrast visual performance.
