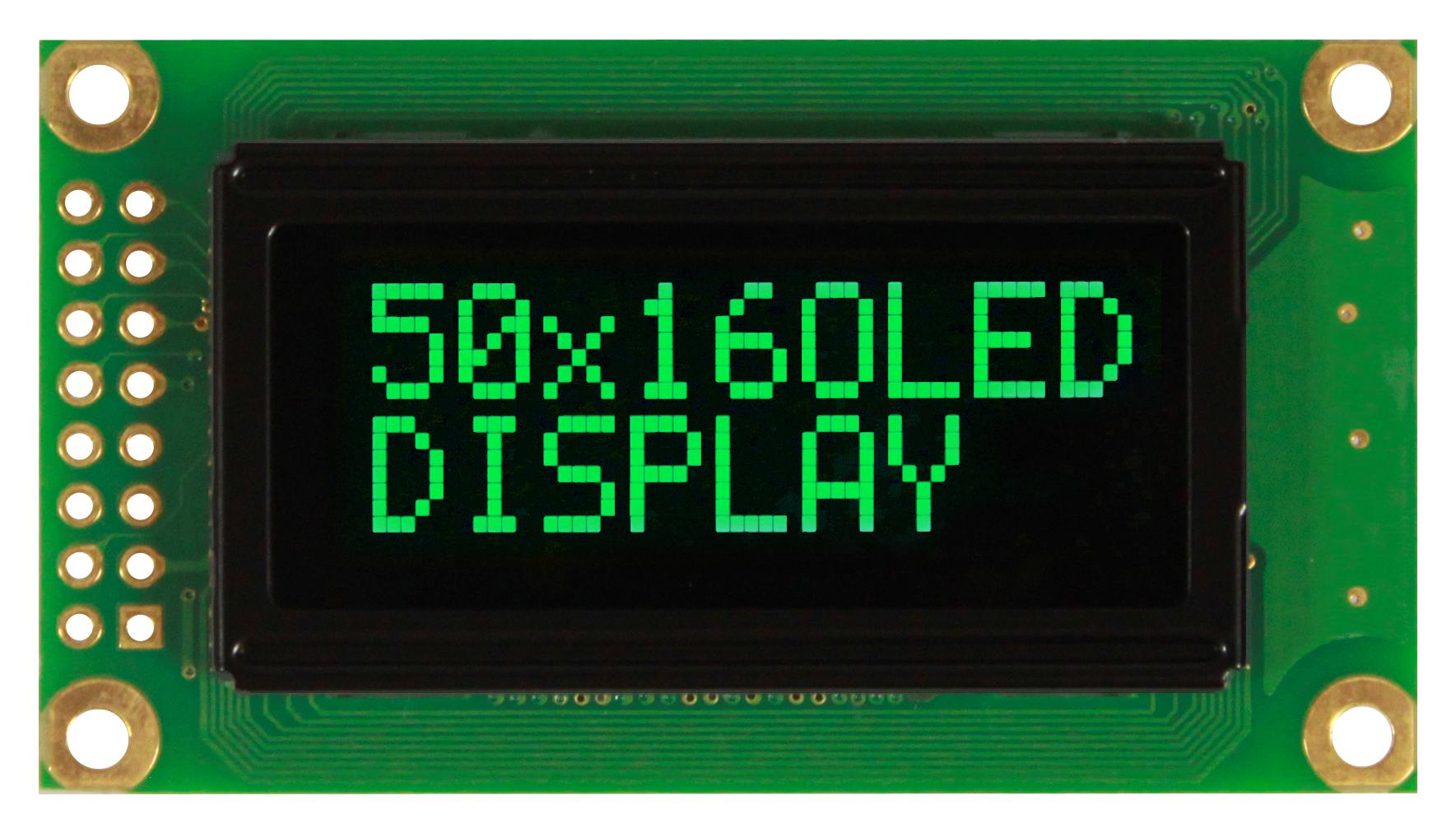

Vishay O050H016AGPP5N0000 Graphic OLED Display
The O050H016AGPP5N0000 from Vishay is a green-emitting OLED graphic display module featuring a 50 x 16 dot matrix. It includes a built-in controller and operates at a 5V driver voltage. The module dimensions are up to 58mm x 32mm x 10mm, with a viewing area of 38mm x 16mm and an active area of approximately 29.96mm x 11.16mm. Suitable for imaging, video, and vision applications.
Vishay O050H016AGPP5N0000 Graphic OLED Display Specifications:
- Module dimension: 58.0 x 32.0 x 10.0 mm
- Viewing area: 38.0 x 16.0 mm
- Active area: 29.96 x 11.16 mm
- Dot size: 0.56 x 0.66 mm
- Dot pitch: 10.60 x 0.70 mm
- Display format: 50 x 16 dots
- Display type: Graphic OLED
- Built-in controller: OLED-0010
- Operation voltage: 5.0 V
- Duty cycle: 1/16
- View angle: 160 degrees contrast ratio 2000:1
- Response time: 10 microseconds
- Luminance: 100 to 120 cd/m2
- Operating temperature: -40°C to +80°C
- Storage temperature: -40°C to +80°C
- Material: OLED, yellow emission
Buy the Buy Vishay OLED Graphic Display Part Number O050H016AGPP5N0000 Online
Secure your Vishay graphic OLED display module O050H016AGPP5N0000 today online. Enjoy fast delivery, competitive pricing, and top-quality imaging performance. This compact, high-contrast OLED module is perfect for embedded systems, display interfaces, and vision applications. With a 50 x 16 dot matrix, built-in controller, and wide viewing angle, it ensures clear, bright images in demanding environments. Elevate your project with a reliable display solution available for online purchase—order now for quick processing and excellent support.
Buy Vishay OLED graphic display module O050H016AGPP5N0000 now and experience reliable, high-contrast visualization for your imaging and vision projects.
Frequently Asked Questions
Where can I buy Vishay O050H016AGPP5N0000?
You can click on the BUY or RFQ button to purchase O050H016AGPP5N0000 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part O050H016AGPP5N0000?
You can download the O050H016AGPP5N0000 datasheet or visit the Vishay website for support.
Who is the manufacturer of O050H016AGPP5N0000?
Vishay
