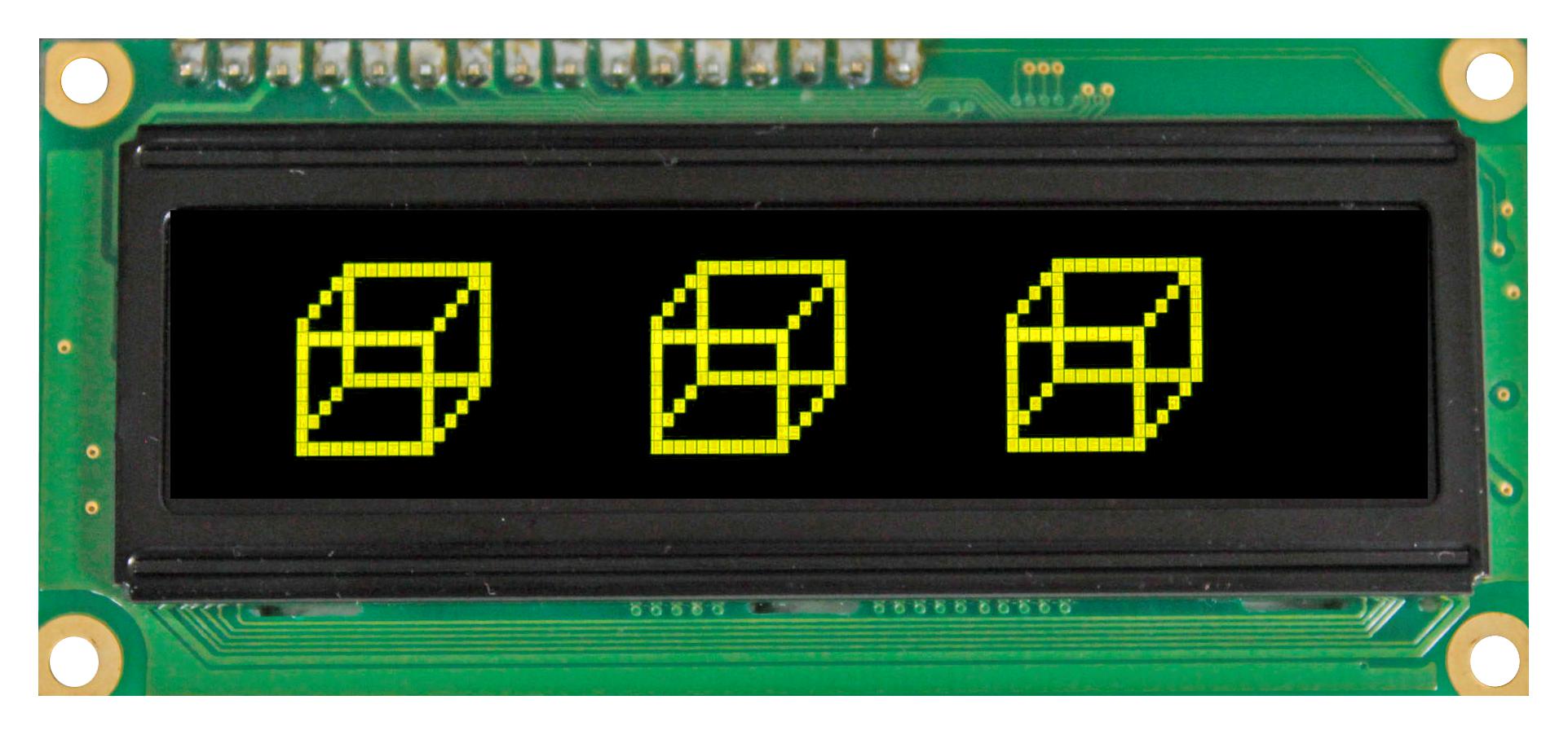

Vishay O100H016ALPP5N0000 Graphic OLED Display
The OLED module features a yellow-emitting 100 by 16 dot graphic display with a polarized passive matrix, operating at 5V driver voltage. It offers a viewing area of 66.0 x 16.0 mm and an active area of 59.95 x 11.15 mm, with dot sizes of 0.55 x 0.65 mm and dot pitch of 0.60 x 0.70 mm. This module supports a duty cycle of 1/16, ensuring efficient operation. Designed for high reliability, it has an expected lifetime of up to 80,000 hours at 25°C, with robust electrical and environmental specifications, making it suitable for various industrial and consumer display applications.
Vishay O100H016ALPP5N0000 Graphic OLED Display Specifications:
- Module dimension: 80.0 x 36.0 x 10.0 mm
- View area: 66.0 x 16.0 mm
- Active area: 59.95 x 11.15 mm
- Dot size: 0.55 x 0.65 mm
- Dot pitch: 0.60 x 0.70 mm
- Display type: OLED, Yellow
- Duty cycle: 1/16
- Operating temperature: -40°C to +80°C
- Storage temperature: -40°C to +80°C
- Supply voltage: 5.0 V
- View angle: 160 degrees
- Luminance: typical data available
- Lifetime: 80,000 hours typical at 25°C
Buy the Vishay Series OLED Display: OLED-100H016A-LPP5NO00000
Enhance your electronic projects with this high-quality yellow OLED graphic display module designed for durability and reliability. Operating at 5V with a 100x16 dot matrix, it provides clear visuals with a wide viewing angle. Ideal for industrial displays, consumer electronics, and custom instrumentation. Easy to integrate with standard interface pins, it offers long operational life up to 80,000 hours. Order online today and enjoy fast shipping, competitive pricing, and technical support for your application needs.
Get Vishay OLED-100H016A-LPP5NO00000 today—built for precision, long-lasting durability, and versatile display applications.
Frequently Asked Questions
Where can I buy Vishay O100H016ALPP5N0000?
You can click on the BUY or RFQ button to purchase O100H016ALPP5N0000 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part O100H016ALPP5N0000?
You can download the O100H016ALPP5N0000 datasheet or visit the Vishay website for support.
Who is the manufacturer of O100H016ALPP5N0000?
Vishay
