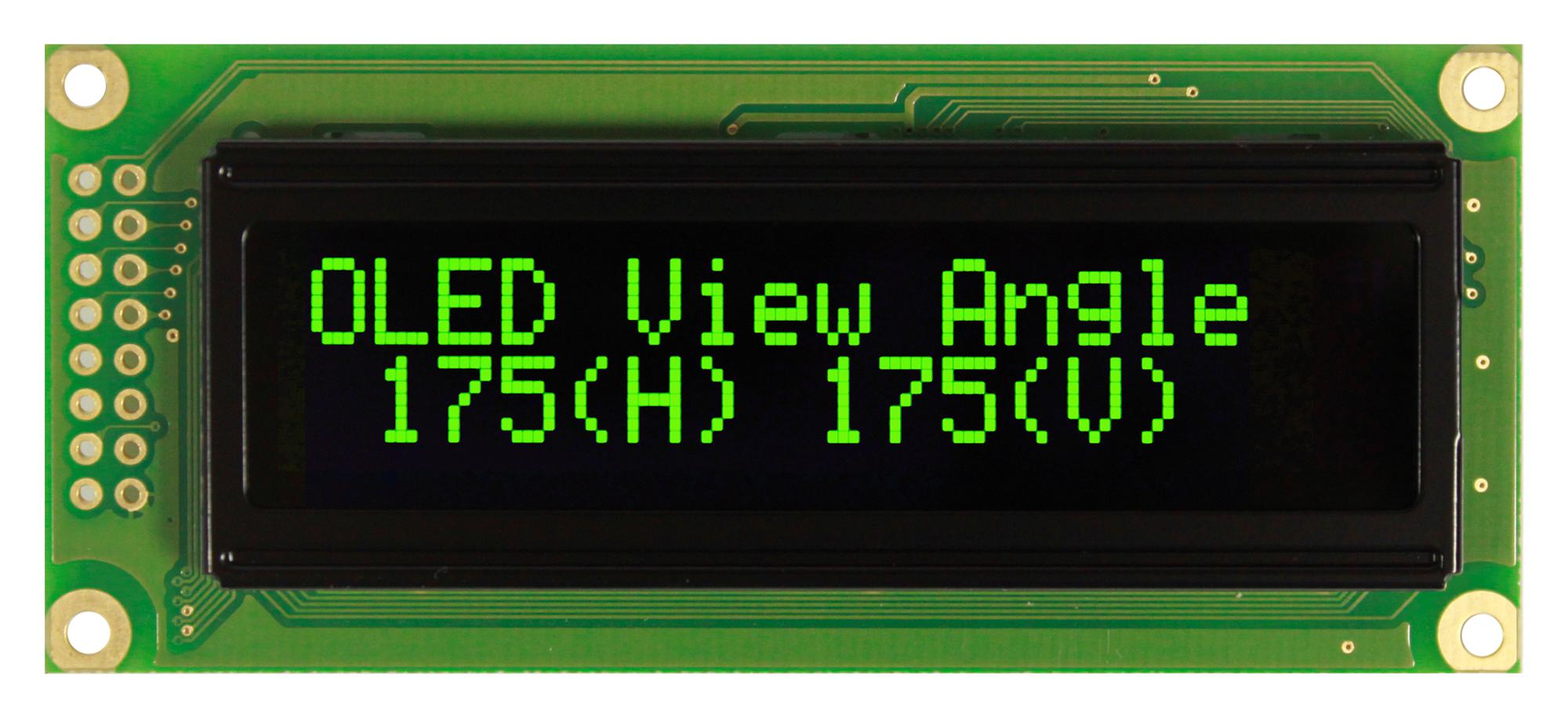

Vishay O100H016CGPP5N0000 OLED Graphic Module
The O100H016CGPP5N0000 from Vishay is a green-emitting OLED graphic display module featuring a 100 by 16 dot layout. It includes a built-in controller, operates at 5V, and uses a passive matrix for display. The module has a maximum dimension of 85mm x 36mm x 10mm, with a viewing area of 66mm x 16mm and an active display area of 59.95mm x 11.15mm. Each dot measures 0.55mm x 0.65mm, with a dot pitch of 0.6mm x 0.7mm. It features mounting holes spaced at 80mm x 31mm and is suitable for imaging, video, and vision applications.
Vishay O100H016CGPP5N0000 OLED Graphic Module Specifications:
- Module dimension: 85.0 x 36.0 x 10.0 mm (max.)
- Viewing area: 66.0 x 16.0 mm
- Active area: 59.95 x 11.15 mm
- Dot size: 0.55 x 0.65 mm
- Dot pitch: 0.60 x 0.70 mm
- Display format: 100 x 16 dots
- Display type: graphic OLED
- Operation voltage: 5 V
- Frame/ mounting holes: 80.0 x 31.0 mm
- Material: OLED, passive matrix
- Temperature range: -40°C to +80°C
- Viewing angle: 160° horizontal and vertical
- Contrast ratio: approx. 2000:1
- Luminance: typical 120 cd/m²
- Response time: <10 μs
Buy the Buy Vishay OLED Graphic Display Part Number O100H016CGPP5N0000 Online
Order the Vishay OLED graphic display O100H016CGPP5N0000 online today. This high-quality 100x16 dot module offers excellent contrast, wide viewing angles, and a durable design, perfect for imaging, video, and vision applications. With a compact size, passive matrix operation, and a built-in controller, it ensures seamless integration into your projects. Experience reliable performance with a simple 5V power supply and precise display features. Purchase now for quick delivery and enhanced visual solutions in your device designs.
Get Vishay OLED graphic display O100H016CGPP5N0000 today—built for high contrast, wide angles, and reliable performance in imaging and video systems.
Frequently Asked Questions
Where can I buy Vishay O100H016CGPP5N0000?
You can click on the BUY or RFQ button to purchase O100H016CGPP5N0000 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part O100H016CGPP5N0000?
You can download the O100H016CGPP5N0000 datasheet or visit the Vishay website for support.
Who is the manufacturer of O100H016CGPP5N0000?
Vishay
