Vishay O100H016CLPP5N0000 OLED Graphic Display

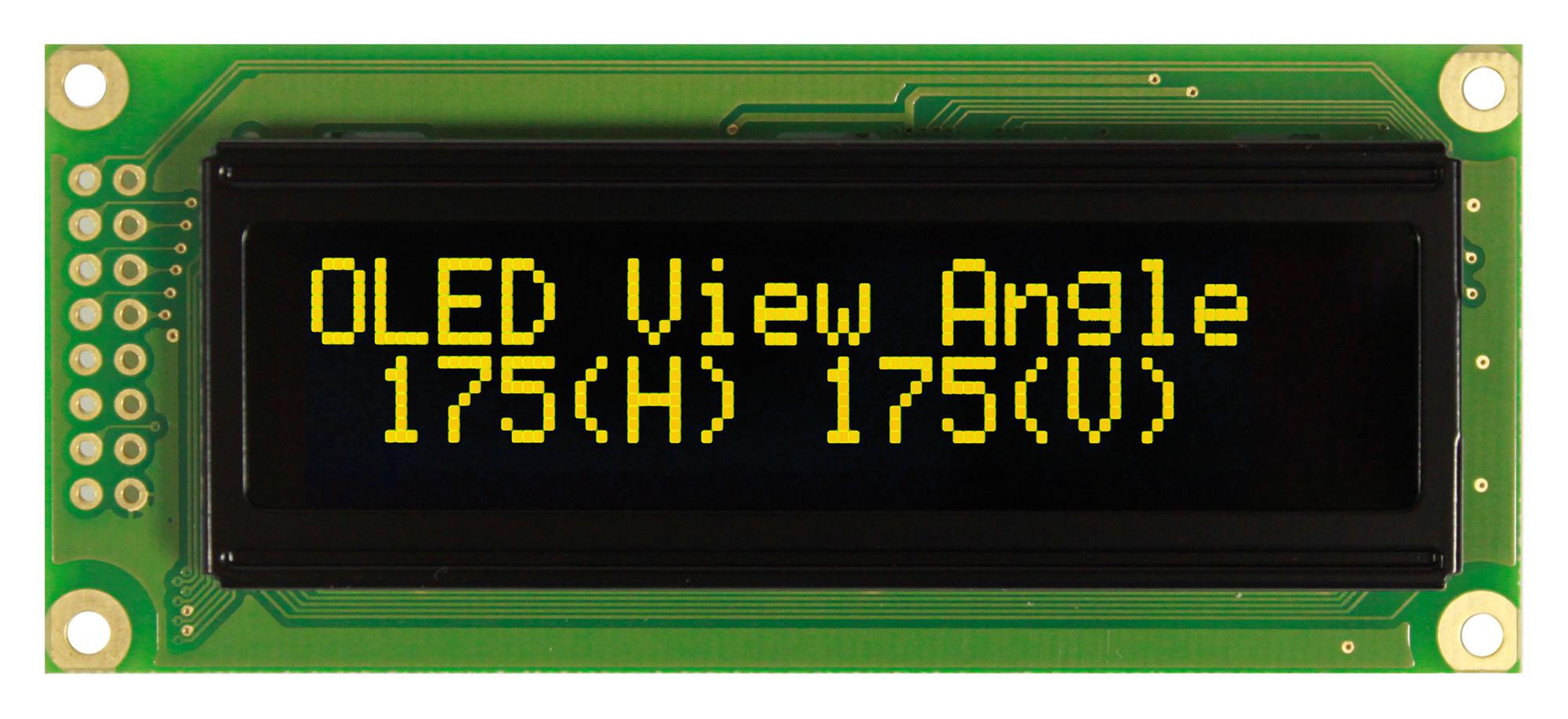

The O100H016CLPP5N0000 from Vishay is a yellow-emitting OLED graphic display module featuring a 100-by-16 dot matrix. It includes a built-in controller, operates at 5V, and uses a passive matrix for display. The module measures up to 85mm x 36mm x 10mm, with a viewing area of 66mm x 16mm and an active display area of 59.95mm x 11.15mm. Each dot measures 0.55mm x 0.65mm with a pitch of 0.6mm x 0.7mm, and it has mounting holes spaced at 80mm x 31mm. This display is suitable for imaging, video, and vision applications.
Vishay O100H016CLPP5N0000 OLED Graphic Display Specifications:
- Module dimension: 185.0 x 36.0 x 10.0 mm
- Viewing area: 66.0 x 16.0 mm
- Active area: 59.95 x 11.15 mm
- Dot size: 0.55 x 0.65 mm
- Dot pitch: 0.60 x 0.70 mm
- Display format: 100 x 16 dots
- Display type: Graphic OLED
- Material: OLED, Yellow
- Viewing angle: 160°
- Brightness: 100-120 cd/m²
- Operating temperature: -40°C to +80°C
- Supply voltage for logic: 5.0 V
- Duty cycle: 1/16
- Interface: Passive matrix
- Number of pins: 16
Buy the Vishay O100H016CLPP5N0000 – Reliable OLED Graphic Display for Industrial Applications
Enhance your projects with the Vishay OLED Graphic Display featuring 100x16 dots, passive matrix, and 5V operation. Its compact size and wide viewing angle make it perfect for imaging, video, and vision systems. Easily integrate with a simple interface and enjoy reliable performance across a temperature range of -40°C to +80°C. Suitable for industrial automation, medical devices, and portable equipment, this OLED module ensures clarity, longevity, and efficiency in your applications. Purchase online today for dependable quality and quick delivery.
Order your Vishay OLED-100H016C-LPPSNO00000 today and elevate your device performance with a high-quality, durable display solution.
