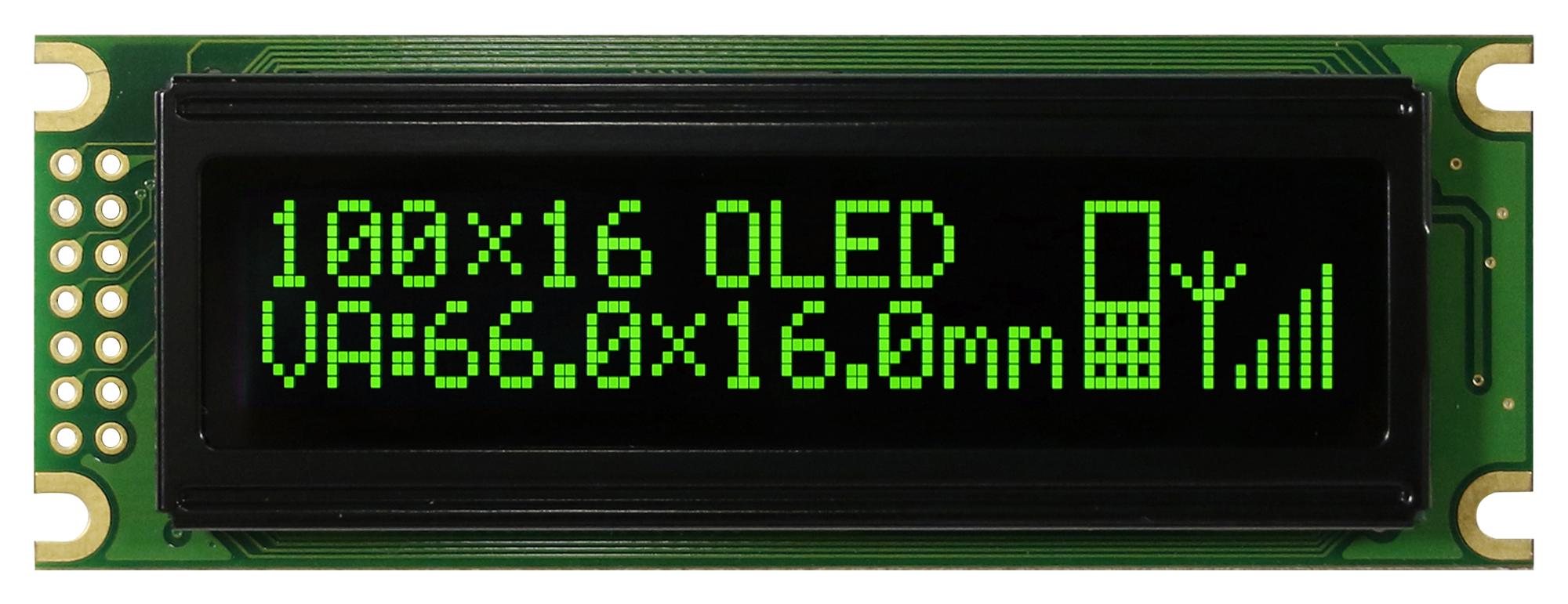

Vishay O100H016DGPP5N0000 Graphic OLED Display Module
The OLED-100H016D from Vishay is a 100x16 graphic OLED display featuring a 1/16 duty cycle, built-in controller, and a 5V power supply. Its active matrix panel measures 85mm by 30mm, with a viewing area of 66mm by 16mm and an active area of 59.95mm by 11.15mm. Dot sizes are approximately 0.55mm by 0.65mm, with a pitch of 0.6mm by 0.7mm. The device offers sunlight readability, optional polarizer, and multiple interface options including 6800, 8080, and SPI for versatile integration in industrial and electronic applications.
Vishay O100H016DGPP5N0000 Graphic OLED Display Module Specifications:
- Display format: 100 x 16 dots
- Active matrix panel size: 85.0 x 30.0 x 10.0 mm
- Viewing area: 66.0 x 16.0 mm
- Active area: 59.95 x 11.15 mm
- Dot size: 0.55 x 0.65 mm
- Dot pitch: 0.60 x 0.70 mm
- Supply voltage for logic: 3.0 V to 5.0 V
- Input voltage logic: Vpp - 3.0 to 5.0 V
- Operating current: approximately 30 mA at 5 V
- Built-in controller: OLED-0010
- Duty cycle: 1/16
- Interface options: 6800, 8080, SPI
- Emitting color: Green
- Mounting holes: 81.0 x 24.0 mm
- Power supply support: +5 V, optional +3 V
- Materials: Compatible with RoHS standards
- Features: Sunlight readable, optional polarizer
Buy the Vishay O100H016D – Reliable Graphic OLED for Industrial Applications
Experience high-quality visual performance with the Vishay Graphic OLED Display Module. Designed for industrial, imaging, and control uses, it offers bright, sunlight-readable graphics, multiple interface options, and compact size. Easily integrate this module into your applications for clear, reliable, and energy-efficient display solutions. With a robust built-in controller and flexible mounting options, it’s perfect for demanding environments requiring precise digital imaging and control. Purchase online now to enhance your electronic project or industrial system with this high-performance OLED display.
Get Vishay OLED-100H016D today—built for precision, energy efficiency, and durability in demanding industrial environments.
