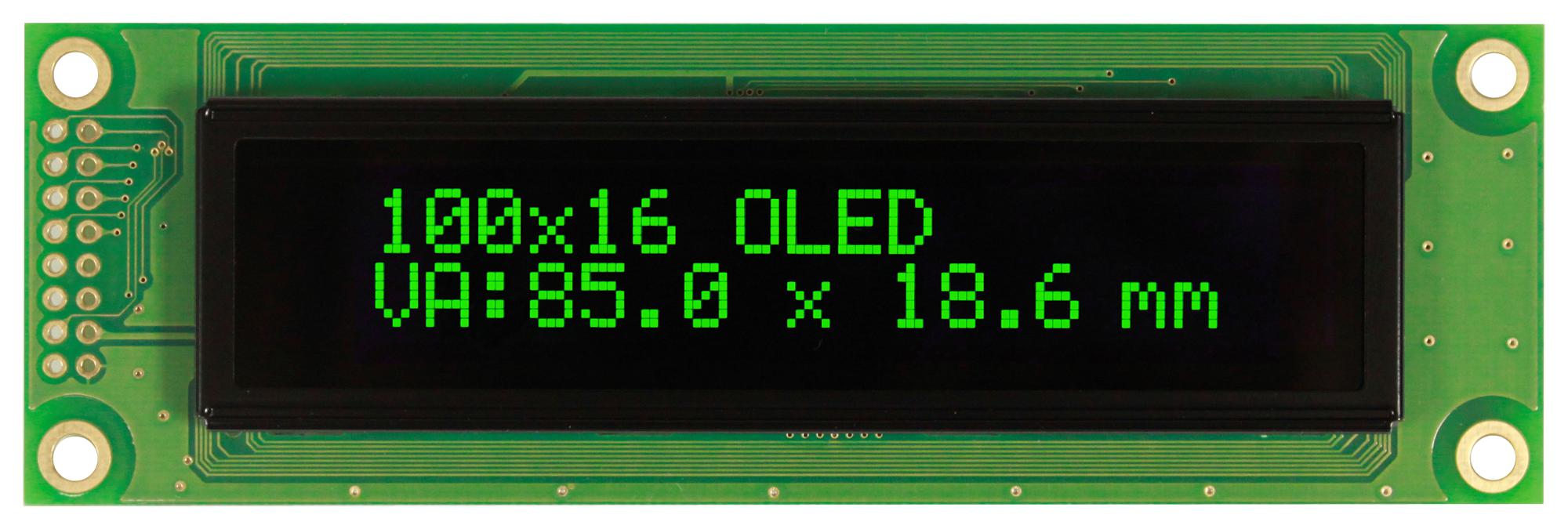

Vishay O100H016FGPP5N0000 OLED Graphic Display
The device is a green-emitting OLED graphic display module featuring a 100 by 16 dot matrix. It includes an integrated controller specifically built for this model, operates with a 5V supply, and utilizes a 1/16 duty cycle for power efficiency. The module dimensions are 116mm in length, 37mm in width, and 9.8mm in height. The viewing area measures 85mm by 18.6mm, with an active display area of 64.95mm by 11.15mm. Each dot has a size of approximately 0.60mm by 0.65mm, with a dot pitch of 0.65mm by 0.7mm. The module features mounting holes at 108mm by 29mm and incorporates a polarized, passive matrix display suitable for imaging, video, and vision applications.
Vishay O100H016FGPP5N0000 OLED Graphic Display Specifications:
- Display format: 100 x 16 dots
- Module dimension: 116.0 x 87.0 x 9.8 mm
- Viewing area: 85.0 x 18.6 mm
- Active area: 64.95 x 11.15 mm
- Dot size: 0.60 x 0.65 mm
- Dot pitch: 0.65 x 0.70 mm
- Supply voltage for logic: 3.0 V to 5.0 V
- Power supply: +5 V, optional +3 V
- Duty cycle: 1/16
- Interface options: 6800, 8080, SPI
- Operating temperature: Not specified
- Material: Passive matrix OLED display
- Mounting holes: 108.0 x 29.0 mm
- Maximum dimensions: 116.0 x 87.0 x 9.8 mm
- Pixel size: approximately 0.60 mm by 0.65 mm
- Polarizer: Optional, sunlight readable
Buy the Vishay O100H016FGP – Reliable OLED Graphic Display for Industrial Applications
Purchase the OLED Graphic Display module online today for your imaging, video, and vision projects. This 100x16 dot matrix module features a built-in controller, operates at 5V, and offers a duty cycle of 1/16 for optimal power efficiency. Its dimensions are compact, with mounting holes for easy installation. Suitable for industrial, automotive, and consumer electronics, this display ensures bright, clear visuals with optional sunlight readability and polarization. Order now to access reliable quality and seamless integration for your projects.
Get Vishay OLED-100H016F today—built for precision with a 100x16 dot matrix and integrated controller for reliable performance in various visual applications.
Frequently Asked Questions
Where can I buy Vishay O100H016FGPP5N0000?
You can click on the BUY or RFQ button to purchase O100H016FGPP5N0000 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part O100H016FGPP5N0000?
You can download the O100H016FGPP5N0000 datasheet or visit the Vishay website for support.
Who is the manufacturer of O100H016FGPP5N0000?
Vishay
