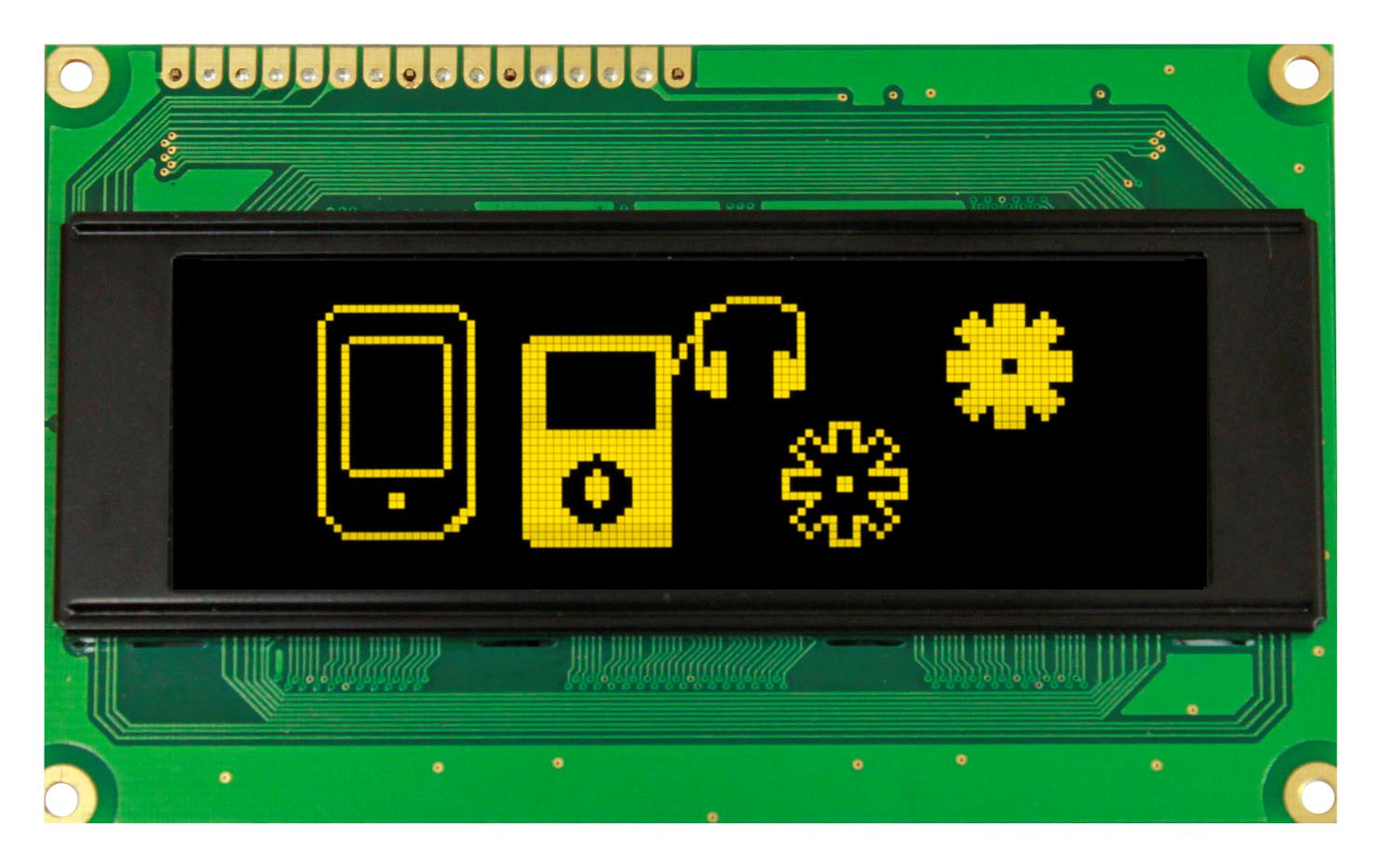

Vishay O100H032ALPP5N0000 Graphic OLED Display Module
The Vishay OLED-100H032A is a yellow-emitting graphic OLED display module with a 100x32 dot array, integrated OLED-0010 controller, and a 1/16 duty cycle. Operating at +5 V, it measures 98mm x 60mm x 10mm, with a viewing area of 77mm x 25.2mm and an active display area of 58.95mm x 19.15mm. Dot size is about 0.54mm x 0.55mm, with a pitch of 0.59mm x 0.6mm. Suitable for imaging, video, and vision applications, it features mounting holes at 93mm x 55mm with optional polarizer for enhanced readability outdoors.
Vishay O100H032ALPP5N0000 Graphic OLED Display Module Specifications:
- Display format: 100 x 32 dots
- Built-in controller: OLED-0010 RoHS compliant
- Operating voltage: +5 V, optional +3 V
- Module dimensions: 98mm x 60mm x 10mm
- Viewing area: 77mm x 25.2mm
- Active area: 58.95mm x 19.15mm
- Dot size: approximately 0.54mm x 0.55mm
- Dot pitch: 0.59mm x 0.6mm
- Mounting holes: at 93mm x 55mm
- Interface: 6800, 8080, SPI options
- Display type: Graphic OLED, polarizer optional
- Maximum current: 43mA at 5V
- Temperature ratings: -0.8°C to +53°C
- Material: Plastic housing, passive matrix design
Buy the Vishay Series OLED-100H032A Graphic OLED Display: O100H032ALPP5N0000
Enhance your electronic projects with the Vishay OLED-100H032A graphic OLED display. Featuring a 100x32 dot array and an integrated OLED controller, this module offers vivid yellow emissions and reliable performance. Its compact size, with dimensions of 98mm x 60mm x 10mm and a viewing area of 77mm x 25.2mm, makes it ideal for a wide range of applications including imaging and video displays. Easy to interface via 6800, 8080, or SPI, it ensures seamless integration for your design needs. Purchase online now for efficient deployment.
Buy Vishay OLED-100H032A now and experience unmatched reliability and high-quality visuals for your imaging, video, and vision applications.
Frequently Asked Questions
Where can I buy Vishay O100H032ALPP5N0000?
You can click on the BUY or RFQ button to purchase O100H032ALPP5N0000 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part O100H032ALPP5N0000?
You can download the O100H032ALPP5N0000 datasheet or visit the Vishay website for support.
Who is the manufacturer of O100H032ALPP5N0000?
Vishay
