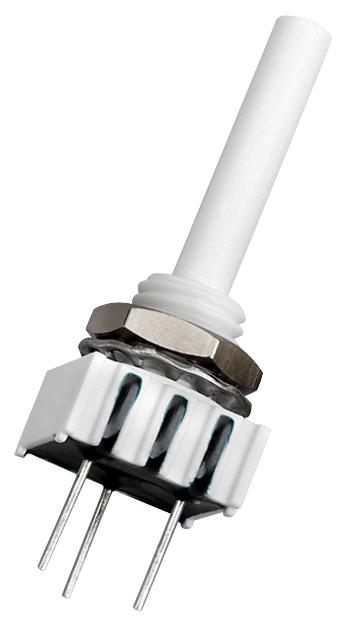

Vishay P10XXAI102KB30 Panel Potentiometer
The P10 series is a miniature, fully sealed panel potentiometer suitable for setting and controlling parameters like temperature, volume, and time. It features a cermet resistive element, industrial-grade construction, and a mechanical life of 10,000 cycles. With positive sealing to IP67, it offers stable electrical characteristics, including resistance values ranging from 100 ohms to 2 megaohms, power rating of 0.5 Watt at 70°C, and a rotational travel of 250°. Its robust design makes it ideal for various precision control applications in industrial and instrumentation settings.
Vishay P10XXAI102KB30 Panel Potentiometer Specifications:
- Resistive element: Cermet
- Electrical travel: 250° + 15°
- Resistance range: 100 Ω to 2 MΩ
- Tolerance: ±10%, optional ±5%
- Power rating: 0.5 Watt at 70°C
- Maximum voltage: 100V to 1000V depending on resistance value
- Dielectric strength: 1000V RMS
- Insulation resistance: 108 MΩ at 300V
- Operating temperature: -55°C to +125°C
- Mechanical travel: 290° + 5°
- End resistance: Typically 12Ω
- Sealing: Fully sealed, IP67 rating
- Shaft length: 16mm or 20mm options
- Weight: Approximately 3.5 grams
- Terminal material: Pure Sn
- Climatic category: 55/100/56
Buy the Vishay Series P10 Potentiometer: Fully Sealed Miniature Control
Order the Vishay P10 series fully sealed miniature control potentiometer online today and enjoy fast delivery and competitive prices. Designed with a robust cermet element, IP67 sealing, and a life cycle of 10,000 cycles, this high-quality potentiometer is perfect for industry, instrumentation, and control panel applications requiring stable and precise parameter adjustments. Its compact size and excellent environmental resistance ensure dependable operation in harsh conditions, making it an excellent choice for engineers and technicians seeking durable, high-performance potentiometers for critical applications.
Buy Vishay P10 series potentiometer now and experience unmatched reliability and performance in precise industrial control applications.
Frequently Asked Questions
Where can I buy Vishay P10XXAI102KB30?
You can click on the BUY or RFQ button to purchase P10XXAI102KB30 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part P10XXAI102KB30?
You can download the P10XXAI102KB30 datasheet or visit the Vishay website for support.
Who is the manufacturer of P10XXAI102KB30?
Vishay
