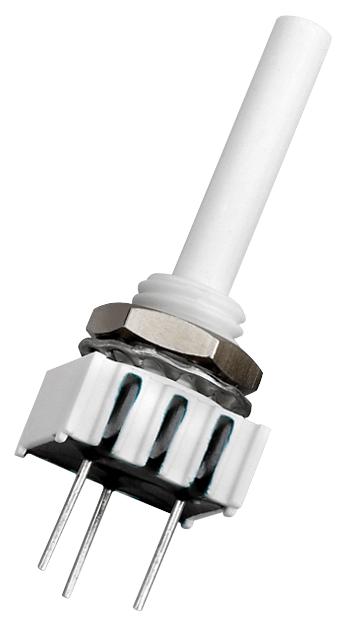

Vishay P10XXAI203KB30 Miniature Sealed Potentiometer
The P10 miniature panel potentiometer by Vishay Sfernice features a fully sealed design with a cermet resistive element, ideal for precision control in industrial applications. It offers a mechanical life of 10,000 cycles, with a compact plastic housing and shaft. The potentiometer is available in various styles with side or top adjustments, and is rated for 0.5 W at 70°C. Its durability and sealing make it suitable for sensitive environments, including temperature, volume, and time parameter setting in diverse electronic control systems.
Vishay P10XXAI203KB30 Miniature Sealed Potentiometer Specifications:
- Electrical travel: 250° + 15°
- Resistance range: 100Ω to 2MΩ
- Tolerance: 10% - 5% (on request)
- Power rating: 0.5W at 70°C
- Temperature coefficient: 150 ppm/°C
- Dielectric strength: 1000V RMS
- Insulation resistance: 108MΩ at 300V
- Mechanical travel: 290° + 5°
- Operating torque: 2.83 oz.-inch max.
- Sealing: Fully sealed, IP67
- Ambient temperature: -55°C to +125°C
- Terminals: Pure Sn
- Vibration resistance: 0.75 mm or 10.9 g during 6h
- Impact resistance: 3 shocks in 3 directions
Buy the Buy Vishay Sfernice P10XXAI203KB30 Part Number P10XXAI203KB30 Online
Purchase the Vishay Sfernice P10 series miniature sealed potentiometer online today to ensure high stability and long cycle life for your electronic control projects. Designed with a cermet resistive element, it provides precise setting with a reliable sealed enclosure rated IP67, ideal for demanding environments. Its 10,000-cycle life and adjustable resistance range from 100Ω to 2MΩ make it versatile for temperature, volume, and parameter adjustments. Fast, secure online purchasing ensures timely delivery for your industrial and electronic applications.
Buy Vishay Sfernice P10XXAI203KB30 now and experience unmatched reliability and performance in precise electrical control.
