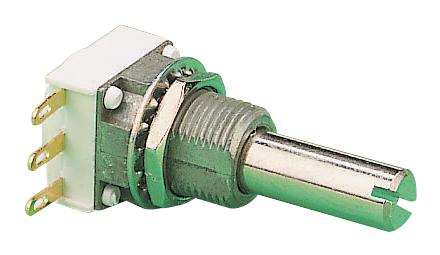

Vishay P11S1T0ABSY00472KA Rotary Control
The P11 series consists of modular, compact rotary potentiometers and switches designed for industrial, military, and professional audio applications. Featuring 12.5 mm square single turn control with multiple module configurations, they offer electrical travel up to 270°, various resistance ranges, and optional switch modules with sealing IP60 or IP64. Available with cermet or conductive plastic elements, these robust components support multiple assemblies, concentric shafts, custom designs, and advanced linearity and interlinearity options, making them suitable for precision control and switching in demanding environments.
Vishay P11S1T0ABSY00472KA Rotary Control Specifications:
- Mechanical travel: 300° ± 5°
- Electrical travel: 270° + 10°
- Resistance range: 1kΩ to 1MΩ for linear taper, 470Ω to 2.2MΩ for non-linear taper
- Power rating at 70°C: 0.5 W per module, 1 W for specified models
- Resistance tolerance: ±20%, ±10%, ±5% (on special request)
- Temperature range: -55°C to +125°C
- Sealing: IP64 (standard), IP60 (optional)
- Mechanical endurance: 50,000 cycles
- End stop torque: 35 N·cm max; concentric shaft: 25 N·cm max
- Electrical endurance: 50,000 cycles
- Linearity: ±2% to ±3% (depending on option)
- Vibration: 10 Hz to 55 Hz, 0.75 mm amplitude
- Shock resistance: 50g, 11 ms
- Weight: 7-9 grams per module
- Environmental conditions: -55°C to +125°C operating temperature
Buy the VISHAY Series P11S Rotary Control: P11S1T0ABSY00472KA
Explore the versatile Vishay P11 series modular rotary control devices, ideal for industrial, military, and professional audio applications. With options for cermet or conductive plastic elements, multiple assemblies, concentric shafts, and integrated switches, these components offer robust performance in demanding environments. Sealed IP64 as standard, they support resistance from 1kΩ to 1MΩ, with high accuracy and durability for precise adjustment and switching tasks. Easy to install and customize, ensuring reliable operation over extensive cycles.
Get Vishay P11S1T0ABSY00472KA today—built for precision and long-lasting durability.
Frequently Asked Questions
Where can I buy Vishay P11S1T0ABSY00472KA?
You can click on the BUY or RFQ button to purchase P11S1T0ABSY00472KA from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part P11S1T0ABSY00472KA?
You can download the P11S1T0ABSY00472KA datasheet or visit the Vishay website for support.
Who is the manufacturer of P11S1T0ABSY00472KA?
Vishay
