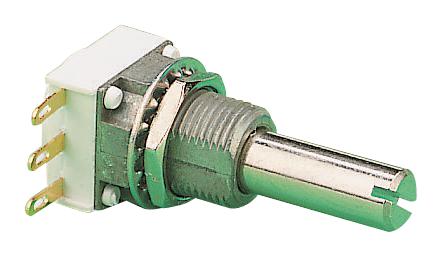

Vishay P11S1V0FGSY00103JA Modular Panel Potentiometer
The product is a versatile 12.5 mm modular panel potentiometer available in cermet (P11S) or conductive plastic (P11A) elements. Engineered for industrial, military, and aeronautics applications, it offers up to seven modules with single or dual shafts, various terminal styles, and optional switch modules including push/push and rotary switches. Features include sealed versions, concentric shafts, custom designs, and multiple detent positions up to 21. It provides reliable electrical performance with resistance ranges from 20 ohms to 10 megohms, linear or non-linear tapers, and high mechanical endurance, ensuring durability in demanding environments.
Vishay P11S1V0FGSY00103JA Modular Panel Potentiometer Specifications:
- Mechanical travel: 300° + 5°
- Electrical travel: 270° + 10°
- Resistance range: 20Ω to 10MΩ (varies with model)
- Power rating at 70°C: 0.5W per module
- Insulation resistance: > 1000 MΩ
- Dielectric strength: 1500 V RMS min.
- Sealing: IP64 (P11S), IP60 (P11A)
- Mechanical endurance: 50,000 cycles
- Operating temperature: -55°C to +125°C
- Torsion torque: 0.4 to 1.8 N·m
- Housing material: Metal and plastic variants
- Switching power: Up to 15 VA
- Switching current: Up to 2A
- Switch lifetime: 10,000 actuations
- Variants include concentric and custom shafts with optional detent, neutral, or switch modules.
Buy the Vishay Series P11S Potentiometer: 12.5 mm Modular Panel Control PartNumber
Purchase Vishay P11S modular panel potentiometer online today to benefit from high-quality construction, customizable features, and seamless integration into industrial, military, and aerospace systems. With available switch options, concentric shafts, sealed versions, and multiple modules, this product ensures precise control and durable performance in demanding environments. Easy ordering process enables quick procurement for OEMs, engineers, and system integrators seeking reliable, versatile potentiometers tailored to specific application needs.
Buy Vishay P11S potentiometer now and experience reliable performance, durability, and flexible customization for industrial automation and aerospace applications.
Frequently Asked Questions
Where can I buy Vishay P11S1V0FGSY00103JA?
You can click on the BUY or RFQ button to purchase P11S1V0FGSY00103JA from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part P11S1V0FGSY00103JA?
You can download the P11S1V0FGSY00103JA datasheet or visit the Vishay website for support.
Who is the manufacturer of P11S1V0FGSY00103JA?
Vishay
