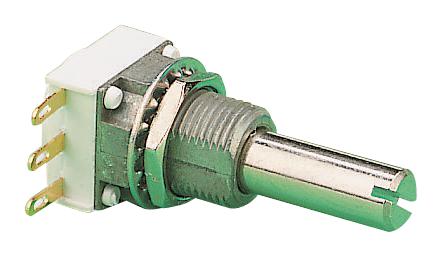

Vishay P11S1V0FLSY00502KA Modular Rotary Potentiometer
The P11S1V0FLSY00502KA is a 5kΩ, 1W, 1-turn, 1-gang modular panel-mounting rotary potentiometer with a cermet element, screwdriver slot adjustment, and a linear track taper. It features concentric shafts, an IP64 protection rating, and a wide operating temperature range from -55°C to 125°C. Designed for low current applications, it offers a mechanical endurance of 50,000 cycles, making it suitable for industrial and electronic control systems with high durability requirements.
Vishay P11S1V0FLSY00502KA Modular Rotary Potentiometer Specifications:
- Resistance: 5kΩ
- Power Rating: 1W at 70°C
- Electrical Travel: 270° + 10°
- Mechanical Travel: 300° + 5°
- Taper: Linear
- Element Type: Cermet
- Sealing Level: IP64
- Operating Temperature Range: -55°C to +125°C
- Endurance: 50,000 cycles
- Shaft Style: Concentric with screwdriver slot
- Protection Rating: IP64
- Size: 12.5 mm panel hole diameter
- Resistance Tolerance: ±20% (standard)
- Mounting: Panel-mount modular configuration
- Application: Industrial controls, audio equipment, instrumentation
Buy the Vishay Series P11S 5kΩ Rotary Potentiometer: P11S1V0FLSY00502KA
Order the Vishay P11S1V0FLSY00502KA online today and enjoy high-quality, durable panel-mount rotary potentiometer designed for industrial electronics. Featuring 5kΩ resistance, 1W power rating, and a linear taper with IP64 sealing, this potentiometer offers precision adjustment and long-lasting operation with 50,000 cycles endurance. Its concentric shafts with screwdriver slots enable easy installation and control. Perfect for applications requiring robust, low current control modules that perform reliably in harsh environments from -55°C to 125°C. Secure your supply today for optimal performance.
Buy Vishay P11S1V0FLSY00502KA now and experience unmatched reliability and performance for industrial control applications with high durability.
Frequently Asked Questions
Where can I buy Vishay P11S1V0FLSY00502KA?
You can click on the BUY or RFQ button to purchase P11S1V0FLSY00502KA from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part P11S1V0FLSY00502KA?
You can download the P11S1V0FLSY00502KA datasheet or visit the Vishay website for support.
Who is the manufacturer of P11S1V0FLSY00502KA?
Vishay
