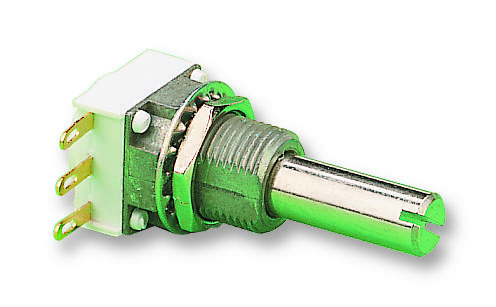

Vishay P11S1V0FLSY00503KA Modular Rotary Potentiometer
The P11S and P11A are modular rotary potentiometers designed for industrial, military, and audio applications with options for cermet or conductive plastic resistive elements. They feature a compact 12.5 mm square single-turn control, with multiple modules, shaft options, and sealed versions for panel and concentric shaft configurations. Capable of up to 300° mechanical travel, they offer Linear or Non-Linear tapers, with power ratings up to 1 W at 70°C. The devices include various switch and detent modules, with environmental sealing, compliance to RoHS, and adjustable linearity and interlinearity performance.
Vishay P11S1V0FLSY00503KA Modular Rotary Potentiometer Specifications:
- Resistive element: Cermet or Conductive plastic
- Electrical travel: 270° + 10°
- Resistance range: 1kΩ to 1MΩ (linear), 470Ω to 2.2MΩ (non-linear)
- Power rating: 1 W at +70°C (per module)
- Mechanical travel: 300° ± 5°
- Operating temperature: -55°C to +125°C
- Sealing: IP64
- End resistance: 20Ω (typical)
- Contact resistance variation: 1-3Ω (linear), 2-5Ω (non-linear)
- Insulation resistance: >1000 MΩ
- Dielectric strength: 1500 V rms
- Mechanical endurance: 50,000 cycles
- Weight: 7-9 g per module
- Linearity: ±25% typical, with options for guaranteed linearity
- Interlinearity: ±2%, dependent on assembly
- Switch options: Reversing, changeover, and push-button modules with sealed operation IP60
- Environmental: RoHS compliant, sealed IP64
- Mounting: Panel, concentric shafts, dual modules, optional custom shaft and linearity adjustments
Buy the Vishay Series P11S Rotary Potentiometer: P11S1V0FLSY00503KA
Discover the versatile and reliable Vishay Series P11S1V0FLSY00503KA modular rotary potentiometer, ideal for industrial, military, and audio applications. Featuring 12.5 mm compact size, sealed IP64 design, and options for cermet or conductive plastic resistive elements, it offers exceptional performance with up to 50,000 cycles of mechanical endurance and adjustable linearity. With multiple modules, switch configurations, and concentric shafts, this device delivers precise control in demanding environments. Buy online now and enhance your electronic control solutions with precision and durability.
Order your Vishay Series P11S1V0FLSY00503KA modular rotary potentiometer today and give your projects the dependable, precise control they deserve.
Frequently Asked Questions
Where can I buy Vishay P11S1V0FLSY00503KA?
You can click on the BUY or RFQ button to purchase P11S1V0FLSY00503KA from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part P11S1V0FLSY00503KA?
You can download the P11S1V0FLSY00503KA datasheet or visit the Vishay website for support.
Who is the manufacturer of P11S1V0FLSY00503KA?
Vishay
