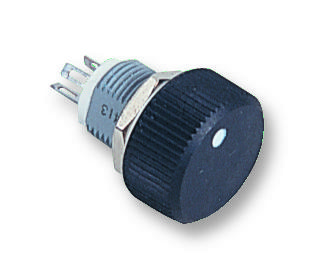

Vishay P16NP103MAB15 panel-mounted potentiometer
The P16S and PA16S are innovative panel-mounted potentiometers with integrated knobs, suited for industrial, professional audio, and military applications. The P16S features a cermet resistive element and offers a power rating of 1 W at 40°C, while the PA16S utilizes conductive plastic with a 0.5 W rating. Both models are fully sealed, panel sealed, with options for metallic or plastic knobs, and include detent and electric cutoff at the start of travel. Designed for durability, these potentiometers operate with high resistance and environmental resilience, ideal for precise control in demanding environments.
Vishay P16NP103MAB15 panel-mounted potentiometer Specifications:
- Mechanical travel: 300° ± 5°
- Operating torque: 2 N·cm typical
- End stop torque: 25 N·cm maximum
- Tightening torque of mounting nut: 250 N·cm maximum
- Panel thickness: max 3 mm
- Weight: 45 g typical
- Environmental protection: IP67
- Sealed container and panel sealed
- Temperature range: -40°C to +125°C (metal knob), -40°C to +85°C (plastic knob)
- Resistive element: Cermet (P16S), Conductive plastic (PA16S)
- Electrical travel: 220° ± 10°
- Power rating: 1 W at 40°C (P16S), 0.5 W at 40°C (PA16S)
- Dielectric strength: 2500 V RMS
- Mechanical and electrical durability: 50,000 cycles, 10,000 switch cycles
- Switching current: max 100 mA (P16S), 1 mA (PA16S)
Buy the Vishay P16S – Reliable Potentiometer for Industrial Applications
Enhance your control systems with Vishay P16S potentiometers, featuring sealed construction, precise resistance adjustment, and durable design. Perfect for industrial, military, and professional audio applications, these potentiometers offer excellent environmental resilience, including IP67 protection ratings, and operate across wide temperature ranges. Available with custom knobs and various electrical configurations, they ensure reliable performance in demanding settings. Order online today and secure high-quality control components for your critical applications, backed by trusted Vishay engineering and innovation.
Buy Vishay P16S now and experience unmatched reliability and performance in demanding control environments.
