Vishay P16NP222KAB15 Panel Potentiometer
The P16 and PA16 are high-quality, panel-mounted potentiometers designed for professional and industrial applications, featuring sealed construction and various knob options. P16 models are suitable for RoHS-compliant environments, with a mechanical travel of 300° and an operating torque of 2 N·m, while PA16 variants are optimized for audio applications. Both types have high dielectric strength of 2500 V, sealed and panel sealed for durability, and are available with metallic or plastic knobs. They support precision resistance adjustments, exhibit resistance ranges from 22kΩ to 220kΩ, and are designed for maximum reliability in demanding environments.
Vishay P16NP222KAB15 Panel Potentiometer Specifications:
- Mechanical travel: 300° + 5°
- Operating torque: 2 N·m typical
- End stop torque: 25 N·m maximum
- Sealing: IP67, sealed container and panel sealed
- Maximum panel thickness: 3 mm
- Resistive element: Cermet (P16) or Conductive plastic (PA16)
- Resistance range: 22kΩ to 220kΩ (standard series)
- Tolerance: ±20%, optional ±10%
- Power rating: 0.5 W at 40 °C for P16 (RoHS), 0.5 W at 40°C for PA16
- Dielectric strength: 2500 V RMS
- Environmental temperature range: -40°C to +125°C (metal knob), -40°C to +85°C (plastic knob)
- Protection grade: IP67
- Connection: 3 terminals with M10 x 0.75 threading
- Dimensions: Various, including panel cutout support and mounting hardware
- Material: Metal or plastic knobs, panel mounting hardware included

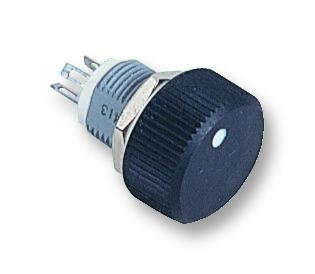

Buy the Buy Vishay Sfernice Knob Potentiometer Part Number P16NP222KAB15 Online
Purchase the Vishay Sfernice Panel Potentiometer P16NP222KAB15 online to ensure reliable performance in industrial and audio settings. With sealed construction, high dielectric strength, and customizable knob options, this potentiometer offers precise resistance control and long-term durability. Easy to install with panel mounting hardware, it supports resistance ranges from 22kΩ to 220kΩ, suitable for various applications requiring stability and robustness. Order now to benefit from fast shipping and expert support for your engineering needs.
Buy Vishay Sfernice P16NP222KAB15 now and experience unmatched durability, precise resistance adjustment, and sealed design for demanding applications.
