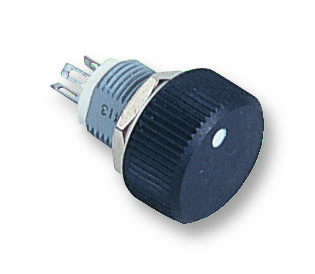

Vishay P16NP222MAB15 Sealed Panel Potentiometer
The P16 series potentiometers are panel-mounted, sealed devices suitable for professional and industrial applications, featuring a cermet resistive element for high durability and reliability. They offer a 270° + 10° electrical travel, with options for metallic or plastic knobs, and are designed to fit panel thicknesses up to 3mm. These potentiometers are fully sealed with IP67 protection, provide high dielectric strength of 2500 V, and endure 50,000 cycles, making them ideal for demanding environments requiring precision, robustness, and compact design.
Vishay P16NP222MAB15 Sealed Panel Potentiometer Specifications:
- Electrical travel: 270° + 10°
- Resistance range: 22kΩ to 220kΩ, logarithmic or linear tapers
- Power rating: 0.5 W at 40°C (PA16), 1 W at 40°C (P16)
- Dielectric strength: 2500 V RMS
- Insulation resistance: > 10^8 MΩ at 500 Vp
- Mechanical travel: 300° + 5°
- Operating torque: 2 Nominal, end stop torque: 25 Nom maximum
- Unit weight: 45 g
- Temperature range: -40°C to +125°C (metal knob), -40°C to +85°C (plastic knob)
- Protection grade: IP67, panel sealed
- Maximum panel thickness: 3mm
- Mounting thread: M10 x 0.75
- Material: Metal or plastic knobs, sealed container
- Sealing: Fully sealed, panel sealed
- Environmental durability: Resistant to damp heat, shock, vibration
- Typical lifespan: 50,000 cycles
Buy the Buy Vishay Sfernice Panel Potentiometer Part Number P16NP222MAB15 Online
Discover the high-quality Vishay Sfernice sealed panel potentiometer, designed for professional and industrial applications. Featuring robust IP67 sealing, a 270° + 10° travel, and options for metallic or plastic knobs, this device offers durability and precise control in demanding environments. Its high dielectric strength of 2500 V and 50,000 cycle lifespan ensure long-term reliability. Perfect for control systems requiring compact, sealed, and dependable potentiometers, it is ideal for applications where environmental resistance and precise adjustment are critical. Buy online today for fast shipping and expert support.
Order your Vishay Series P16NP222MAB15 sealed panel potentiometer today and enhance your industrial control projects with reliable precision and IP67 protection.
