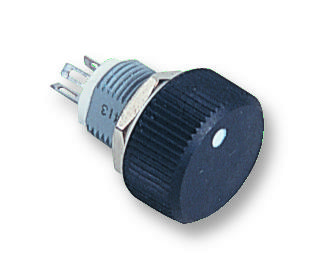

Vishay P16NP471MAB15 Knob Potentiometer
The P16 and PA16 are compact, panel-mounted potentiometers designed for professional and industrial applications, offering reliable resistance adjustment with sealed construction. The P16 model features a cermet resistive element, rated at 1 Watt at 40°C, suitable for high dielectric strength up to 2500 V. The PA16 version uses conductive plastic, rated at 0.5 W at 40°C, optimized for professional audio equipment. Both variants provide a smooth 270° rotation, with sealed panels and mounting hardware, available with metallic or plastic knobs. They are tested according to CECC 41000 and IEC 60393-1 standards, ensuring durability and environmental resilience.
Vishay P16NP471MAB15 Knob Potentiometer Specifications:
- Resistive Element: Cermet for P16, Conductive plastic for PA16
- Electrical Travel: 270° ± 10°
- Power Rating: 1 W at 40°C for P16, 0.5 W at 40°C for PA16
- Dielectric Strength: 2500 V (RMS)
- Mechanical Travel: 300° ± 5°
- End Stop Torque: 25 N·cm maximum
- Operating Torque: 2 N·m typical
- Max. Mounting Nut Tightening Torque: 250 N·cm
- Environmental Temperature Range: -40°C to 125°C for metallic knob, -40°C to 85°C for plastic knob
- Sealing: Fully sealed, panel sealed, IP67 protection grade
- Materials: Metallic or plastic knobs, adjustable on request
- Resistance Range: 22kΩ to 470kΩ, logarithmic or linear taper options
- Tolerance: ±20%, custom tolerances available
- Dimensions (mm): Refer to detailed technical drawings with panel cutouts, typical sizes 96 mm diameter
- Compliance: RoHS, IEC 60393-1, CECC 41000
Buy the Buy Vishay Sfernice Knob Potentiometer Part Number P16NP471MAB15 Online
Order Vishay Sfernice knob potentiometers online today to experience reliable and precise resistance adjustment for industrial and audio applications. Designed with fully sealed construction, high dielectric strength, and customizable knobs, these potentiometers ensure durability in harsh environments. Perfect for panel-mount setups, they feature a smooth 270° rotation, with models suitable for high power and tight mechanical specifications. Trusted by professionals, these potentiometers deliver consistent performance, easy installation, and compliance with international standards, making them the ideal choice for demanding engineering, instrumentation, and audio system projects.
Get Vishay Sfernice P16NP471MAB15 today—designed for high durability and precise resistance adjustment in demanding industrial applications.
Frequently Asked Questions
Where can I buy Vishay P16NP471MAB15?
You can click on the BUY or RFQ button to purchase P16NP471MAB15 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part P16NP471MAB15?
You can download the P16NP471MAB15 datasheet or visit the Vishay website for support.
Who is the manufacturer of P16NP471MAB15?
Vishay
