Vishay P6SMB39AHM3AH Transient Voltage Suppressor
The P6SMB39AHM3AH is a surface-mount transient voltage suppressor (TVS) diode designed to protect sensitive electronic circuits from voltage transients induced by switching and lightning. Featuring a 600 W peak pulse power capacity with a fast response time, it is available in unidirectional and bidirectional configurations in SMB packages. The device operates within a temperature range of -65°C to +150°C, ensuring reliable performance in automotive, industrial, and consumer electronics. Its glass-passivated chip junction enhances stability and voltage clamping efficiency, making it suitable for protecting ICs, MOSFETs, and sensor lines against voltage surges.
Vishay P6SMB39AHM3AH Transient Voltage Suppressor Specifications:
- Package: SMB (D0-214AA)
- Peak pulse power (Ppp): 600 W with 10/1000 us waveform
- Operating temperature range: -65°C to +150°C
- Peak pulse current (lesm): 100 A (unidirectional only)
- Clamp Voltage: 39.0 V at 1.0 A
- Response time: Very fast
- Leads: Matte tin plated, solderable per J-STD-002
- Material: Glass-passivated chip junction
- Thermal resistance junction to ambient: 100°C/W
- Maximum terminal temperature: 150°C
- Compliance: RoHS, halogen-free options available
- Polarity: Unidirectional marked with band, bidirectional without marking
- Mounting: Surface mount with standard SMT layout
- Surge capability: withstands repetitive pulse duty cycle of 0.01%

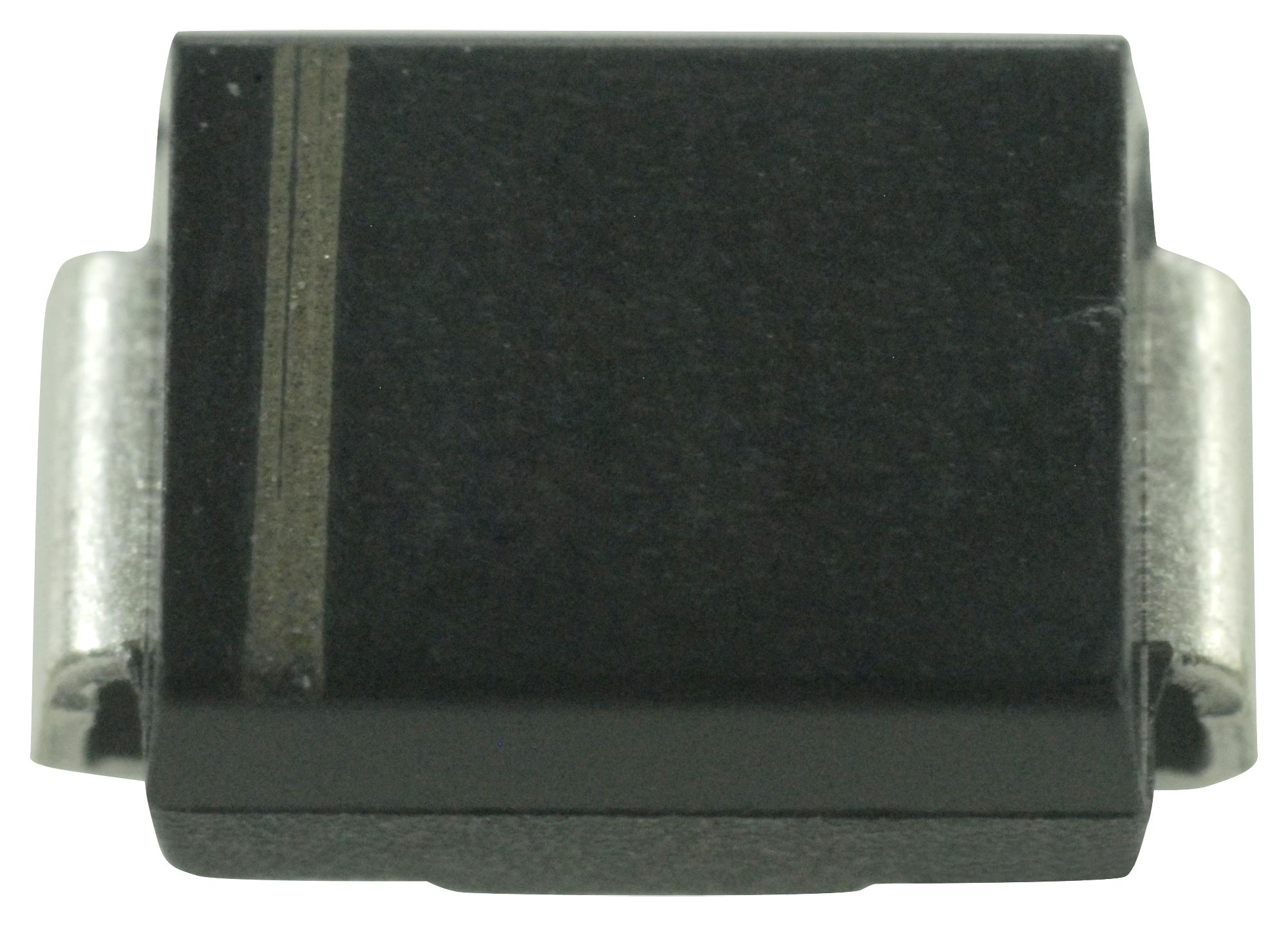

Buy the Buy VISHAY P6SMB39AHM3AH Part Number 600W TVS Diode Online
Secure your electronic circuits with the VISHAY P6SMB39AHM3AH TVS diode, offering 600 W peak pulse power. Its fast response time and wide operating temperature range ensure effective transient voltage suppression in automotive, industrial, and consumer electronics. Designed with a glass-passivated chip junction in SMB package, it provides excellent clamping capability and durability. Ideal for protecting sensitive ICs, MOSFETs, and signal lines against voltage surges, this device guarantees dependable performance in challenging environments, and is available for quick online ordering.
Order your VISHAY P6SMB39AHM3AH Series TVS diode today and protect your electronics against high-voltage transients with reliability and fast response.
Frequently Asked Questions
Where can I buy Vishay P6SMB39AHM3AH?
You can click on the BUY or RFQ button to purchase P6SMB39AHM3AH from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part P6SMB39AHM3AH?
You can download the P6SMB39AHM3AH datasheet or visit the Vishay website for support.
Who is the manufacturer of P6SMB39AHM3AH?
Vishay
