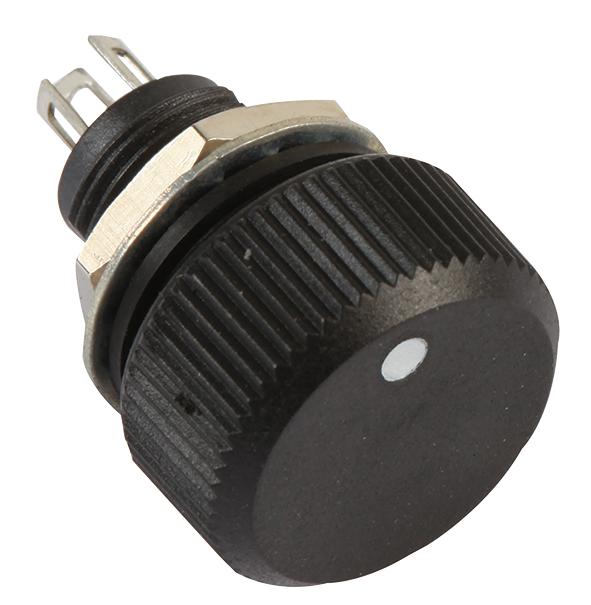

Vishay PA16NP472MAB15 Sealed Potentiometer
The PA16NP472MAB15 is a sealed panel-mounted potentiometer with a conductive plastic resistive element, offering a power rating of 0.5 W at 40°C. It features a compact design for professional audio applications, with a 270° rotation, IP67 sealing, and reinforced mechanical durability—ideal for demanding environments. The potentiometer provides precise control with a resistive value of 470kΩ, and its sealed construction ensures resistance to dust and moisture. Suitable for various industrial and audio equipment requiring reliable, sealed potentiometers.
Vishay PA16NP472MAB15 Sealed Potentiometer Specifications:
- Type: Panel-mounted sealed potentiometer
- Resistive element: Conductive plastic
- Resistance value: 470kΩ
- Power rating: 0.5 W at 40°C
- Electrical travel: 270°
- Mechanical travel: 300° ± 5°
- Sealing: IP67, fully sealed and panel sealed
- Operating torque: Nominal 2 N·m
- End stop torque: Max 25 N·m
- Operating temperature: -40°C to +85°C
- Maximum panel thickness: 3 mm
- Dimensions: Compact design, mounting hardware includes nuts, washer, O-ring
- Durability: 50,000 cycles lifespan
- Weight: Approximately 45 g
- Application: Professional audio, industrial control, equipment requiring sealed control parameters
Buy the Vishay Series P16 Potentiometer: PA16NP472MAB15
Discover the high-reliability Vishay Series P16 PA16NP472MAB15 sealed potentiometer, featuring a conductive plastic resistive element and robust IP67 sealing. This compact design offers a resistance of 470kΩ, power rating of 0.5 W at 40°C, and a 270° electrical travel, making it ideal for professional audio and industrial applications. Its durable construction supports up to 50,000 cycles of operation, ensuring long-term performance in demanding environments. Perfect for precision control in equipment requiring moisture and dust resistance, order online today for dependable quality assurance.
Order your Vishay Series P16 PA16NP472MAB15 sealed potentiometer today and ensure reliable, high-quality control for industrial and audio projects.
