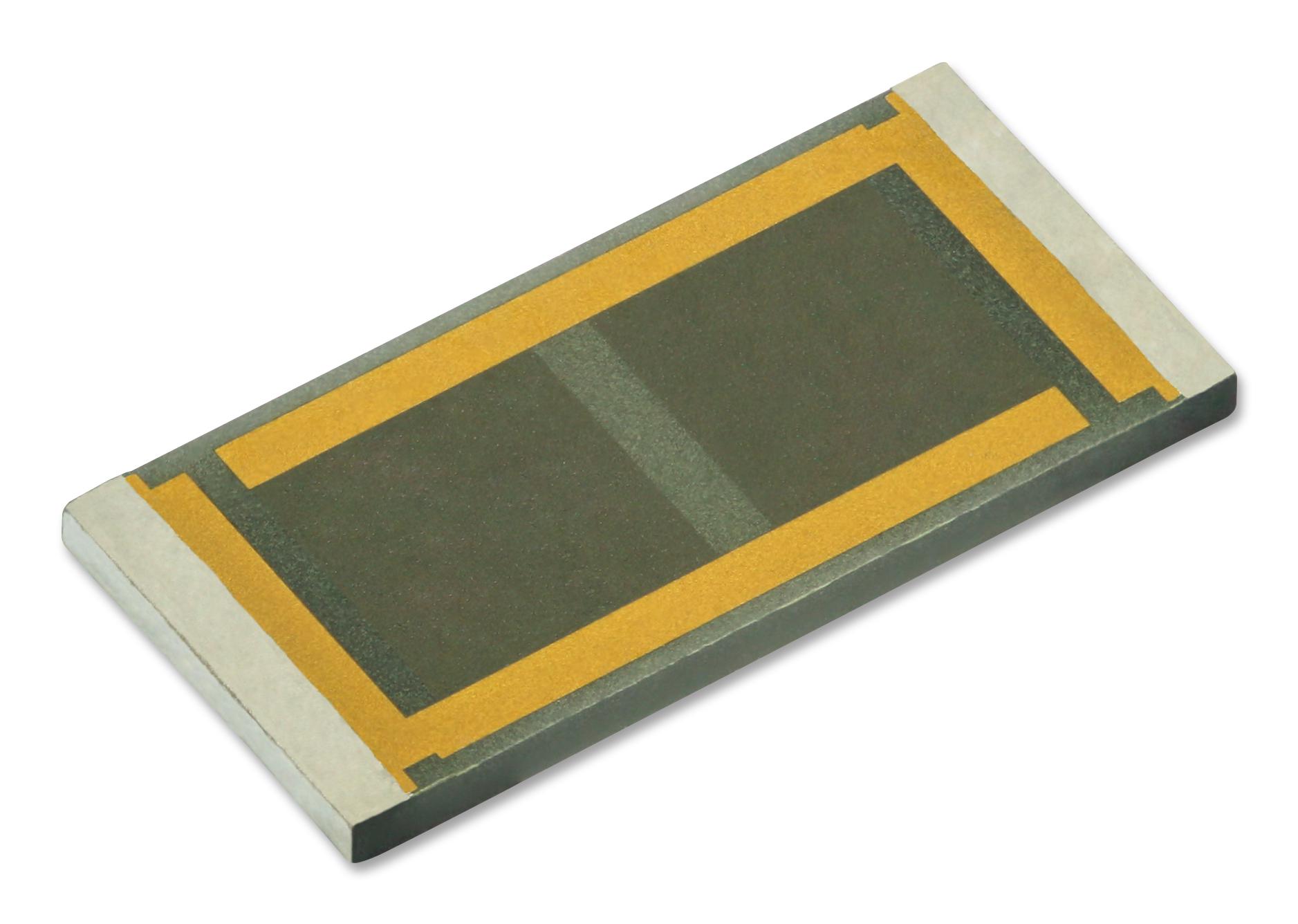

Vishay PCAN0603E1001BST3 High Power Aluminum Nitride Resistor
The PCAN series high power chip resistors are built on aluminum nitride ceramic substrates, offering up to 6 W power handling. They feature enlarged backside terminations to improve heat dissipation and ensure reliable solder joints. Designed with passivated nichrome resistive elements, these resistors have a resistance range from 2 Q to 30.1 KQ, a tolerance of ±0.1%, and a TCR of +25 ppm/°C. Suitable for power supplies, switching, and braking systems, they provide high stability, RoHS compliance, and flame resistance, optimized for demanding electronic applications with excellent thermal management.
Vishay PCAN0603E1001BST3 High Power Aluminum Nitride Resistor Specifications:
- Power Rating: up to 6.0 W at +70 °C
- Resistance Range: 2 Q to 30.1 KQ
- Tolerance: ±0.1 %
- Temperature Coefficient: +25 ppm/°C
- Operating Temperature Range: -55 °C to +155 °C
- Material: Passivated nichrome, Aluminum nitride substrate
- Flame Resistance: UL 94 V-0
- RoHS compliant
- Terminations: Tin/lead solder or lead-free solder (Sn96.5/Ag3.0/Cu0.5)
- Dimensions (e.g., 0603 size): Length approx. 0.064 inches, Width approx. 0.032 inches, Thickness approx. 0.016 inches
- Environmental tests: withstand thermal shock, moisture resistance, and high-temperature exposure
- Design facilitates heat removal with enlarged backside terminations for improved reliability
Buy the Vishay Series PCAN Aluminum Nitride Chip Resistor: PCAN0603E1001BST3
Order the Vishay PCAN0603E1001BST3 high power aluminum nitride chip resistor online today. Engineered for applications demanding excellent heat dissipation, low tolerance, and stable performance up to 6 W of power. These resistors are ideal for power supplies, switching circuits, and braking systems, providing high reliability, RoHS compliance, and flame resistance. Benefit from fast delivery, secure checkout, and expert support to enhance your electronic designs with this dependable component. Invest in quality for your demanding applications today.
Buy Vishay PCAN0603E1001BST3 high power aluminum nitride chip resistor now and experience unmatched reliability and thermal performance.
Frequently Asked Questions
Where can I buy Vishay PCAN0603E1001BST3?
You can click on the BUY or RFQ button to purchase PCAN0603E1001BST3 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part PCAN0603E1001BST3?
You can download the PCAN0603E1001BST3 datasheet or visit the Vishay website for support.
Who is the manufacturer of PCAN0603E1001BST3?
Vishay
