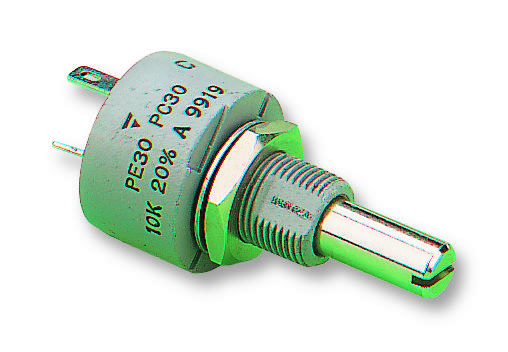

Vishay PE30L0FG221KAB Sealed Potentiometer
The Vishay Sfernice PE30L0FG221KAB is a fully sealed professional-grade potentiometer featuring a cermet resistive element, high power rating of 3 W at 70°C, and a robust IP67 sealing for harsh environments. It offers various mounting options, a 270° electrical travel, and optional features like center detent and custom shafts. Suitable for precision control applications, it adheres to IEC standards, ensuring reliability, stability with low temperature coefficient, and durability for long-term use in industrial and automation systems.
Vishay PE30L0FG221KAB Sealed Potentiometer Specifications:
- Resistive element: Cermet
- Electrical travel: 270° + 10°
- Resistance range: 22 Ω to 2.2 MΩ
- Power rating: 3 W at 70°C
- Temperature coefficient: +150 ppm/°C (typical)
- Dielectric strength: 2500 V RMS
- Insulation resistance: > 10^4 MΩ at 300 V
- Mechanical travel: 300° ± 5°
- Operating torque: 3 N·cm max
- Environmental temperature: -55°C to +125°C
- Sealing: Fully sealed, IP67
- Weight: 23 g to 32 g
- Shock resistance: 50 g for 11 ms
- Vibration: 10 Hz to 65 Hz, 0.75 mm amplitude
Buy the Buy Vishay PE30L0FG221KAB Fully Sealed Potentiometer Online
Purchase the Vishay PE30L0FG221KAB sealed potentiometer online today. This precision component offers a 3W power rating, 270° travel, low temperature coefficient, and IP67 sealing, making it suitable for demanding industrial environments. Its robust construction, optional features like center detent, and customizable shafts ensure it meets diverse control needs. Easy to install with reliable Faston connections, this potentiometer guarantees durability, stability, and high performance in automation, instrumentation, and industrial equipment applications. Order now for fast delivery and seamless integration.
Get Vishay PE30L0FG221KAB sealed potentiometer today—built for industrial control with high power and IP67 protection.
