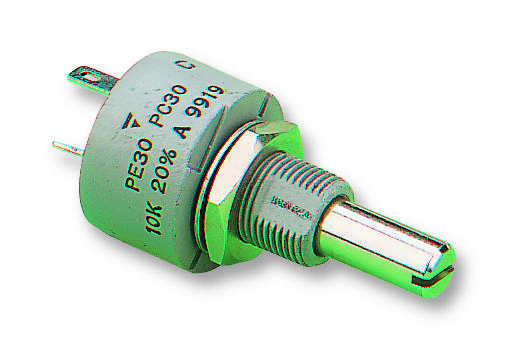

Vishay PE30L0FL104KAB Sealed Industrial Potentiometer
This fully sealed industrial potentiometer offers a high power rating of 3 W at 70°C and features a cermet resistive element for durability and precision. Designed for panel mounting with sealing ring options, it provides stable electrical travel of 270° plus 10°. Suitable for rugged environments, it has a temperature range of -55°C to +125°C, with IP67 sealing for moisture and dust protection. Electrical specifications include a resistance range from 22 Ω to 10 MΩ, with linear and logarithmic tapers, and excellent electrical and mechanical endurance for industrial automation and control applications.
Vishay PE30L0FL104KAB Sealed Industrial Potentiometer Specifications:
- Electrical travel: 270° + 10°
- Mechanical travel: 300° + 5°
- Resistance range: 22 Ω to 10 MΩ with linear and logarithmic tapers
- Power rating: 3 W at 70°C
- Temperature range: -55°C to +125°C
- Sealing: Fully sealed, IP67
- End resistance: 102 Ω typical
- Dielectric strength: 2500 V RMS
- Insulation resistance: 10^4 MΩ at 300 V DC
- Operating torque: max 4.25 oz.-inch
- Vibration: 0.75 mm or 10 G for 6 hours
- Shock: up to 50 G for 11 ms
- Terminals: Tin-plated pure Sn
- Mechanical end stop torque: 120 Ncm
Buy the Buy Vishay Fully Sealed Potentiometer Part Number PE30L0FL104KAB Online
Purchase the Vishay PE30L0FL104KAB sealed industrial potentiometer online for reliable performance in demanding environments. With IP67 sealing, a high power rating of 3 W at 70°C, and resistance options from 22Ω to 10 MΩ, this device ensures precise control and long-lasting durability. Its rugged construction withstands vibration, shock, and wide temperature ranges, making it ideal for automation, instrumentation, and industrial applications. Order now to benefit from fast shipping, excellent technical support, and competitive pricing.
Get Vishay PE30L0FL104KAB today—designed for high durability and stable performance in industrial control systems.
Frequently Asked Questions
Where can I buy Vishay PE30L0FL104KAB?
You can click on the BUY or RFQ button to purchase PE30L0FL104KAB from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part PE30L0FL104KAB?
You can download the PE30L0FL104KAB datasheet or visit the Vishay website for support.
Who is the manufacturer of PE30L0FL104KAB?
Vishay
