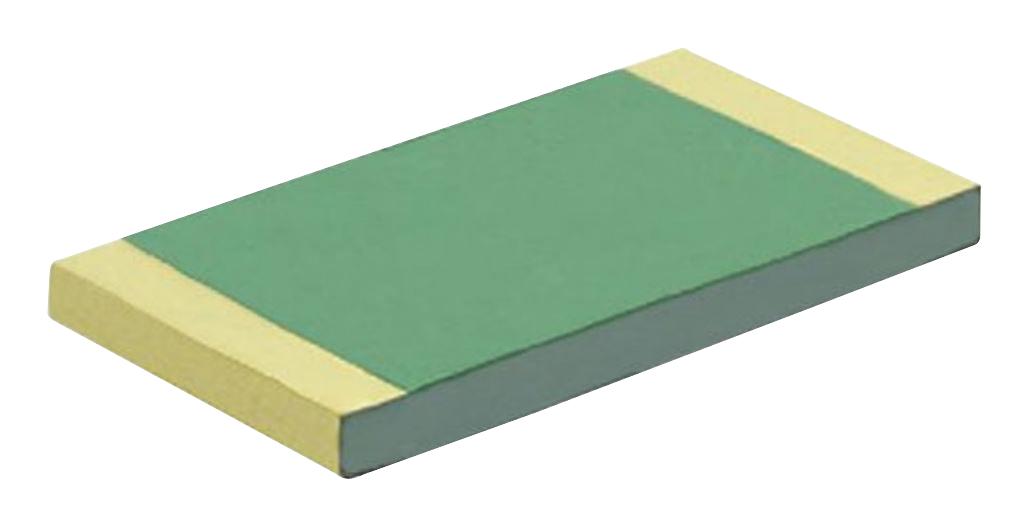

Vishay PEP0402Y5002WGTA Power Resistor
The PEP series high-precision wraparound, power-enhanced thin film chip resistors are designed for high-power applications requiring low noise and superior stability. They feature a resistive thin film layer capable of withstanding temperatures up to 250°C, with robustness mainly dependent on termination and solder joint quality. These resistors are ideal for customers switching to smaller device sizes while maintaining power capacity. They offer a load life stability of 0.1% typical (up to 0.35% maximum) after 2000 hours at rated power and 70°C, possess very low noise, utilize thin film technology, and are resistant to sulfur corrosion, confirmed by ASTM B809-95 humid vapor testing. The terminations are finished with gold over nickel barrier for reliable connections.
Vishay PEP0402Y5002WGTA Power Resistor Specifications:
- Size options: 0402, 0603, 0805, 1206
- Resistance range: 39 Ω to 900 kΩ
- Power ratings: up to 1 W for 1206 size
- Temperature coefficient: ±5 ppm/°C to ±50 ppm/°C depending on model
- Operating temperature: -55°C to +155°C
- Film: Nickel chromium based alloy
- Termination: Gold over nickel barrier, tin silver over nickel barrier
- Load life stability: 0.1% typical after 2000 hours at 70°C
- Resistant to sulfur (ASTM B809-95)
- Dimensions in millimeters: 0402 (1.00x0.60), 0603 (1.52x0.85), 0805 (1.91x1.27), 1206 (3.06x1.60)
- Sensitive to humidity and vibration, tested under MIL-STD-202 conditions
- RoHS and halogen compliant
Buy the Vishay Series PEP High Power Thin Film Resistors: PEP0402Y5002WGTA
Order Vishay PEP0402Y5002WGTA resistors online today and enjoy high stability, low noise, and compact design for your power-sensitive electronic projects. These resistors offer superior temperature handling up to 250°C, excellent resistance stability over extended periods, and corrosion resistance thanks to sulfur-resistant properties. Perfect for modern electronics requiring small footprint and high power, they are essential components for engineers seeking reliability, precision, and durability in their designs. Purchase now to ensure your project benefits from Vishay’s proven quality and performance.
Buy Vishay PEP0402Y5002WGTA high-precision resistors now and experience unmatched reliability and performance in demanding applications.
Frequently Asked Questions
Where can I buy Vishay PEP0402Y5002WGTA?
You can click on the BUY or RFQ button to purchase PEP0402Y5002WGTA from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part PEP0402Y5002WGTA?
You can download the PEP0402Y5002WGTA datasheet or visit the Vishay website for support.
Who is the manufacturer of PEP0402Y5002WGTA?
Vishay
