Vishay PEP0603Y2002WNTA High Power Thin Film Resistor
The PEP series high-precision wraparound, power-enhanced thin film chip resistors are designed for high power applications, offering low noise, superior stability, a low temperature coefficient of resistance, and low voltage coefficient. The resistive thin film layer can withstand temperatures up to 250°C, with robustness primarily depending on terminations and solder joints. These resistors are recommended for customers seeking smaller device sizes with the same power ratings. Features include load life stability of 0.1% at 2000 hours/PN/70°C, very low noise, sulfur resistance, and tin-silver over gold barrier terminations.
Vishay PEP0603Y2002WNTA High Power Thin Film Resistor Specifications:
- Size options: 0402, 0603, 0805, 1206
- Resistance range: 39 Ω to 900 kΩ
- Power Rating: up to 1 W for 1206 size
- Operating Temperature: -55°C to +155°C
- Temperature Coefficient: Up to +50 ppm/°C
- Material: Nickel chromium alloy, thin film technology
- Termination: Tin silver over nickel barrier, gold over nickel barrier
- Load Life Stability: 0.1% typical at 2000 hours/PN/70°C
- Sulfure Resistance: ASTM B809-95 humid vapor test
- Dimensions: Approximately 1.52 mm to 3.06 mm in length, depending on size
- Maximum Voltage: 50 V to 200 V depending on size
- Humidity Resistance: 85% RH at 50°C for 500 hours
- Mechanical: Alumina substrate, epoxy and silicone protection
- Reflow Compatibility: Lead-free solder (Sn 96.5%, Ag 3%, Cu 0.5%)

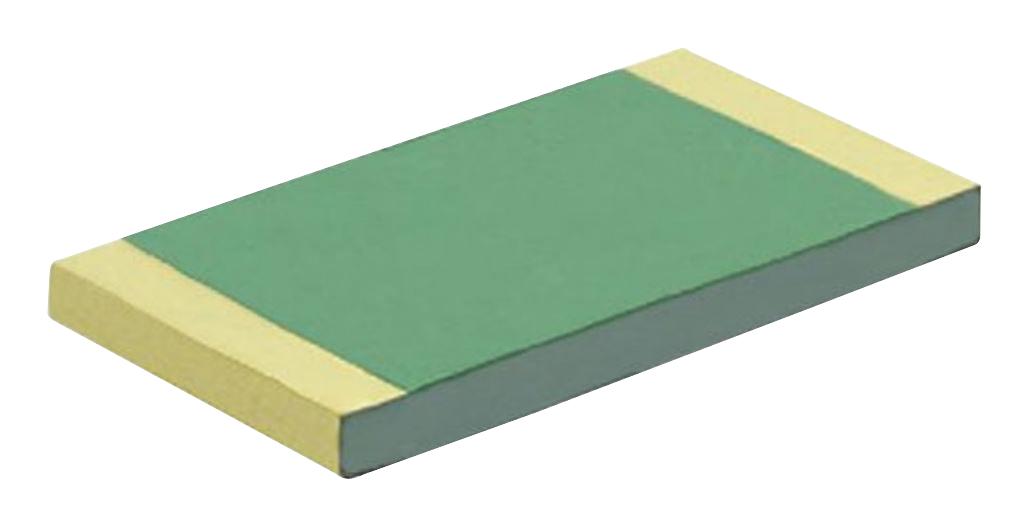

Buy the Buy Vishay Sfernice High Power Wraparound Resistors Part Number PEP0603Y2002WNTA Online
Order the Vishay Sfernice PEP0603Y2002WNTA online today to benefit from high power handling, excellent stability, low noise, and sulfur resistance, ideal for compact high-temperature environments. These resistors feature a precisely engineered thin film layer with a load life stability of 0.1% after 2000 hours at 70°C, making them suitable for demanding industrial and electronic applications where reliability and performance are critical. Secure fast shipping and competitive pricing by purchasing online now.
Buy Vishay Sfernice PEP0603Y2002WNTA now and experience unmatched stability, low noise, and high-temperature resilience for demanding applications.
Frequently Asked Questions
Where can I buy Vishay PEP0603Y2002WNTA?
You can click on the BUY or RFQ button to purchase PEP0603Y2002WNTA from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part PEP0603Y2002WNTA?
You can download the PEP0603Y2002WNTA datasheet or visit the Vishay website for support.
Who is the manufacturer of PEP0603Y2002WNTA?
Vishay
