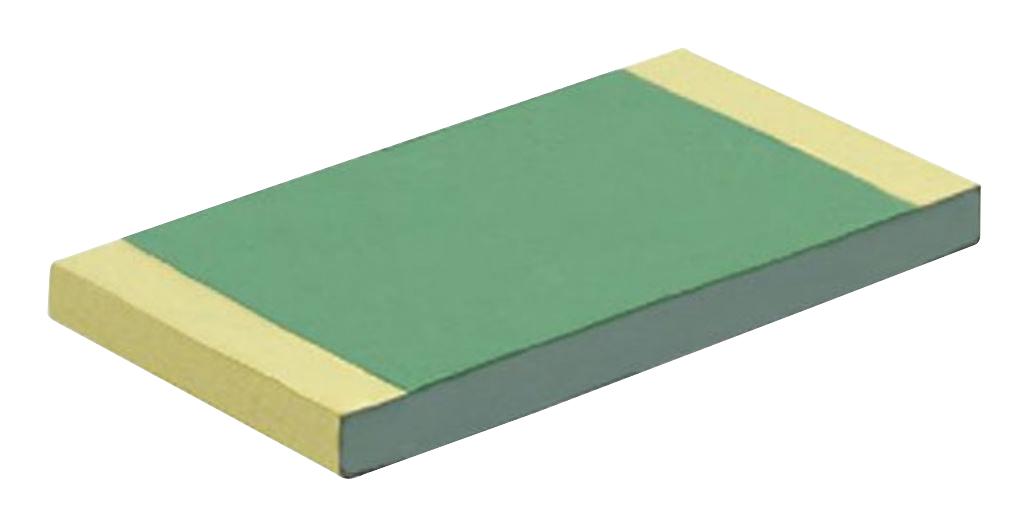

Vishay PEP1206Y1000BNTA Power Thin Film Resistor
The PEP series high-precision wraparound, power-enhanced thin film chip resistors are designed for high-power applications. They offer low noise, excellent stability, and low temperature and voltage coefficients. Capable of withstanding temperatures up to 250°C, they are ideal for compact designs requiring high reliability. Featuring a load life stability of 0.1% after 2000 hours at 70°C, these resistors are sulfur resistant, with tin-silver over nickel and gold barrier terminations. Suitable for demanding electronic applications, they combine robustness and precision for industry professionals.
Vishay PEP1206Y1000BNTA Power Thin Film Resistor Specifications:
- Size: 1206
- Resistance Range: 39 to 900KΩ
- Rated Power: 0.660 W at 1206 size, 1 W mounted on alumina
- Temperature Coefficient: +5 ppm/°C to +25 ppm/°C depending on model
- Operating Temperature Range: -55°C to +155°C
- Terminations: Tin-silver over nickel barrier, gold over nickel barrier
- Load Life Stability: 0.1% typical at 70°C after 2000 hours
- Humidity Resistance: Sulfur resistant per ASTM B809-95 humid vapor test
- Film Material: Nickel chromium based alloy
- Maximum Temperature: 250°C resistive layer withstand
- Protection: Epoxy + silicone
- Dimensions: Length 3.06 mm, Width 1.60 mm
- Tolerance: Down to ±0.05%
- Packaging: Waffle-pack, tape and reel options available
- Compliance: RoHS, Halogen
- Certifications: UL Listed, CECC compliant
Buy the Vishay Series PEP Power Enhanced Thin Film Resistors: PEP1206Y1000BNTA
Purchase the Vishay PEP1206Y1000BNTA power thin film resistor online today and enjoy superior stability, low noise, and sulfur resistance. Perfect for high-power applications requiring precise, reliable performance in compact sizes. With a load life stability of 0.1% after 2000 hours at 70°C, these resistors withstand harsh environments up to 250°C. Featuring robust terminations, RoHS compliance, and multiple packaging options, they ensure longevity and consistency in your demanding electronic projects.
Buy Vishay PEP1206Y1000BNTA now and experience unmatched reliability and high power stability for your electronic designs.
Frequently Asked Questions
Where can I buy Vishay PEP1206Y1000BNTA?
You can click on the BUY or RFQ button to purchase PEP1206Y1000BNTA from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part PEP1206Y1000BNTA?
You can download the PEP1206Y1000BNTA datasheet or visit the Vishay website for support.
Who is the manufacturer of PEP1206Y1000BNTA?
Vishay
