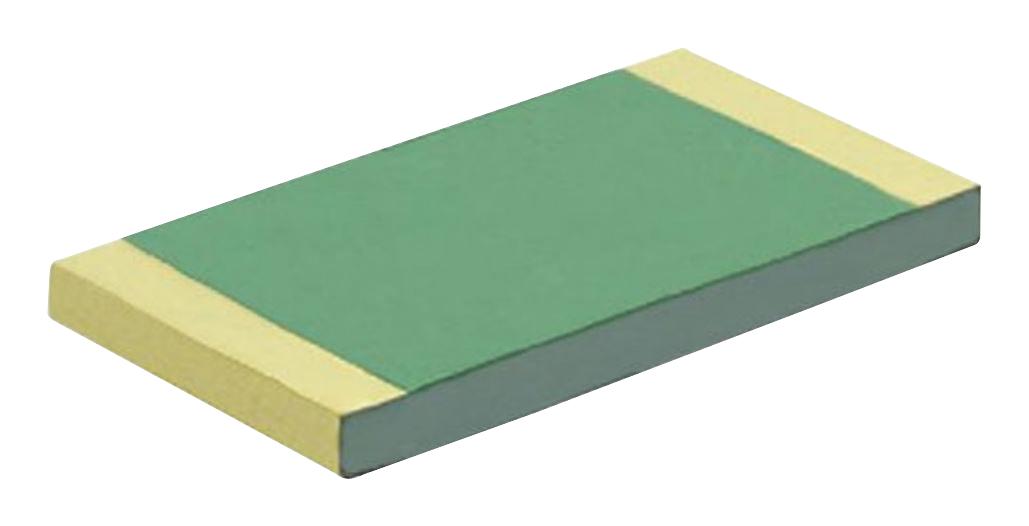

Vishay PEP1206Y2003WNTA Power Resistor
The PEP series high-precision wraparound power-enhanced thin film chip resistors are designed for high power applications requiring low noise, superior stability, and low temperature and voltage coefficients. The resistive thin film layer can withstand temperatures up to 250°C, with robustness primarily limited by terminations and solder joints. This series is ideal for customers seeking smaller device sizes without compromising power capacity. Features include load life stability of 0.1% (typical) at 2000 hours at rated power and 70°C, very low noise levels, sulphur resistance according to ASTM B809-95 humid vapor test, and tin-silver over gold barrier terminations.
Vishay PEP1206Y2003WNTA Power Resistor Specifications:
- Rated Resistance Range: 39 to 900KΩ
- Power Rating: up to 1 W (1206 size)
- Temperature Range: -55°C to +155°C
- Film Material: Nickel chromium based alloy
- Termination: tin-silver over nickel barrier, gold over nickel barrier
- Dimensions: 3.06 mm length for 1206 size, 1.52 mm for 0603, 1.00 mm for 0402, 1.91 mm for 0805
- Resistance Tolerance: down to +0.05%
- Voltage Ratings: 50 V (0402), 75 V (0603), 150 V (0805), 200 V (1206)
- Resistance Drift: < 0.05% after 2000 hours at 70°C
- Features: Low noise (< -35 dB), sulphur resistant, RoHS compliant
Buy the Vishay Series PEP Power Resistors: PEP1206Y2003WNTA
Order Vishay PEP1206Y2003WNTA high power thin film resistor online now for reliable performance in demanding electronic applications. This advanced resistor offers superior stability, low noise, and high temperature resistance up to 250°C. Ideal for compact designs requiring precise resistance values, it features sulphur resistance, low TCR, and robust terminations. By purchasing online, you ensure fast delivery, authentic product quality, and access to technical support, making it the perfect choice for electronics professionals seeking durable, high-performance resistors for various industrial and commercial projects.
Get Vishay PEP1206Y2003WNTA today—built for precision, high power, and long-lasting durability.
Frequently Asked Questions
Where can I buy Vishay PEP1206Y2003WNTA?
You can click on the BUY or RFQ button to purchase PEP1206Y2003WNTA from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part PEP1206Y2003WNTA?
You can download the PEP1206Y2003WNTA datasheet or visit the Vishay website for support.
Who is the manufacturer of PEP1206Y2003WNTA?
Vishay
