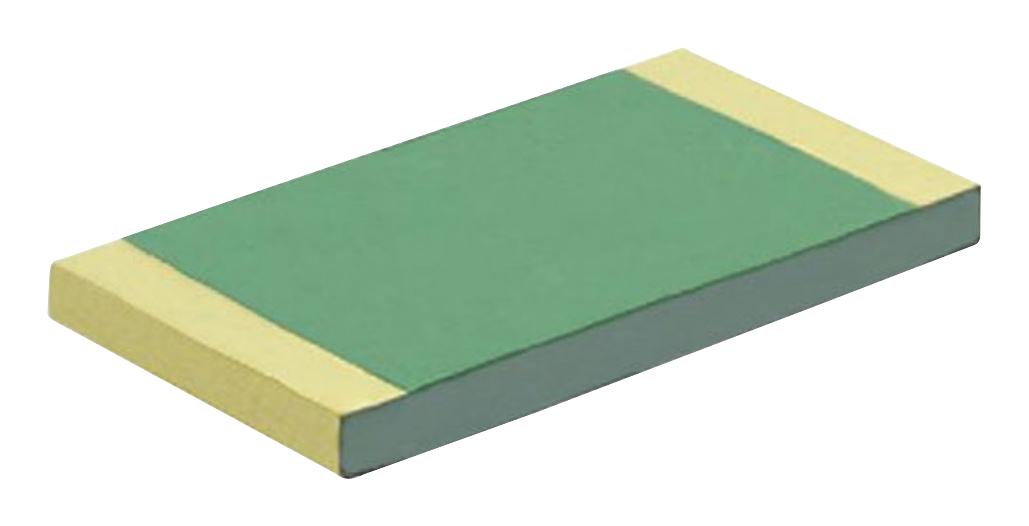

Vishay PEP1206Y9003WNTA Power Thin Film Resistor
The PEP series high-precision wraparound, power-enhanced thin film chip resistors are ideal for high power applications demanding low noise and exceptional stability. These resistors feature a thin film layer capable of withstanding temperatures up to 250°C, with robustness mainly limited by terminations and solder joints. They offer load life stability around 0.1% (max 0.35%) over 2000 hours at 70°C and rated power. Designed with sulfur resistance according to ASTM B809-95, they include tin-silver over nickel gold barrier terminations, making them compact yet powerful for demanding electronic circuits.
Vishay PEP1206Y9003WNTA Power Thin Film Resistor Specifications:
- Resistance Range: 39 Q to 900 KQ depending on size
- Rated Power: 0.125 W (0402), 0.320 W (0603), 0.500 W (0805), 0.660 W (1206)
- Temperature Range: -55°C to +155°C
- Material: Nickel-chromium based alloy film with mineral passivation
- Operating Temperature: Up to 250°C withstand capability
- Termination Finish: Tin-silver over nickel barrier, gold over nickel barrier
- Humidity Resistance: Sulfur resistant per ASTM B809-95
- Film Technology: Thin film
- Size Dimensions: 0402 (1.00x0.60 mm), 0603 (1.52x0.85 mm), 0805 (1.91x1.27 mm), 1206 (3.06x1.60 mm)
- Electrical Noise: < -35 dB
- Voltage Coefficient: < 0.01 ppm/V
- Load Life Stability: 0.1% typical over 2000 hours at 70°C
- RoHS Compliant: Yes
- Climatic and Mechanical Standards: Meets industry testing for reliability and durability
Buy the Vishay Series PEP High Power Thin Film Resistors: PEP1206Y9003WNTA
Purchase the Vishay Power Thin Film Resistor series online today and equip your electronic designs with high power handling, exceptional stability, and low noise. These resistors are designed to withstand high temperatures up to 250°C, ensuring dependable function in demanding environments. Featuring sulfur resistance, low voltage coefficient, and excellent load life stability, they are ideal for compact, high-performance circuits. Order now from our online store to enhance your project reliability with technologically advanced, RoHS-compliant resistors designed for longevity and precision.
Order your Vishay Series PEP1206Y9003WNTA high power resistors today and ensure your electronic projects benefit from reliable, stable power performance.
Frequently Asked Questions
Where can I buy Vishay PEP1206Y9003WNTA?
You can click on the BUY or RFQ button to purchase PEP1206Y9003WNTA from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part PEP1206Y9003WNTA?
You can download the PEP1206Y9003WNTA datasheet or visit the Vishay website for support.
Who is the manufacturer of PEP1206Y9003WNTA?
Vishay
