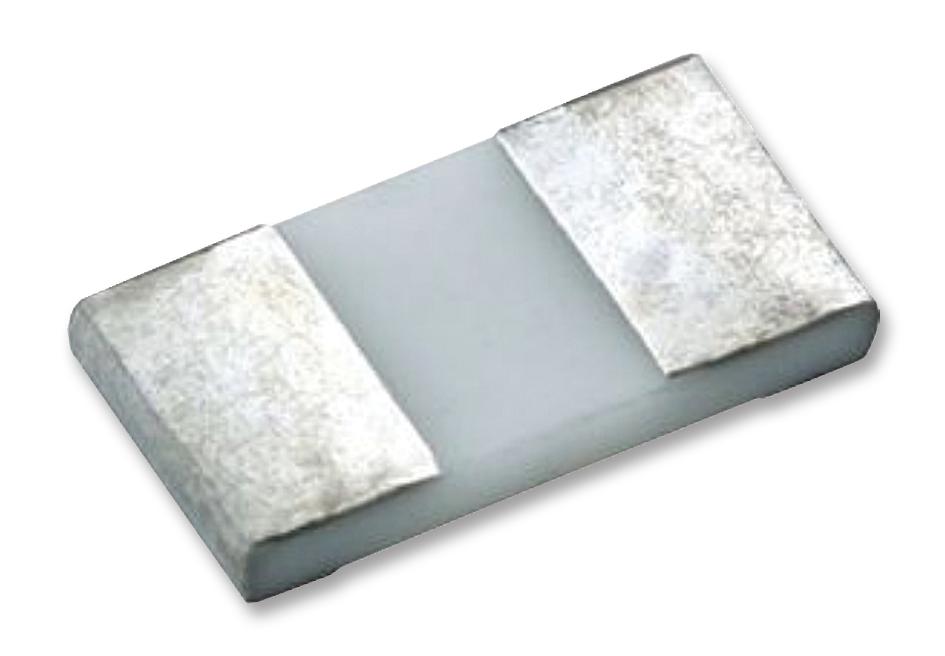

Vishay PHP01206E20R0BST3 High Power Chip Resistor
The Vishay Dale Thin Film PHP series high-power chip resistors are designed with enlarged backside terminations to improve heat dissipation, supporting power ratings up to 2.5 W. They feature a high purity ceramic alumina substrate, resistance values from 10 Ω to 30.1 kΩ, and tight tolerance of ±0.1%. Suitable for power supplies, switching, braking, motor circuits, and test equipment, they exhibit excellent stability with a TCR of +25 ppm/°C, low noise, and UL 94 V-0 flame resistance. These resistors operate reliably from -55°C to +155°C, withstand environmental stresses, and are available in various case sizes including 0603, 0805, 1206, and 2512.
Vishay PHP01206E20R0BST3 High Power Chip Resistor Specifications:
- Power Rating: 2.5 W at +70°C, up to 2.5 W maximum
- Resistance Range: 10 Ω to 30.1 kΩ
- Resistance Tolerance: ±0.1 %
- Temperature Coefficient: +25 ppm/°C
- Operating Temperature: -55°C to +155°C
- Material: Nichrome resistive element on alumina substrate
- Terminations: Tin/lead solder or RoHS-compliant tin/silver/copper
- Flame Resistance: UL 94 V-0
- Case Sizes: 0603, 0805, 1206, 2512
- Dimensions (in inches): 0603 – Length 0.064 ±0.006, Width 0.032, Thickness 0.020 max; 0805 – Length 0.080 ±0.006, Width 0.050, 1206 – Length 0.126 ±0.008, Width 0.063, 2512 – Length 0.259 ±0.009/-0.015, Width 0.124
- Thermal Stability: AR 0.1 % at 2000 hours at +70°C
- Environmental Resistance: Soldering heat, moisture, thermal shock, and high temperature exposure compliance
