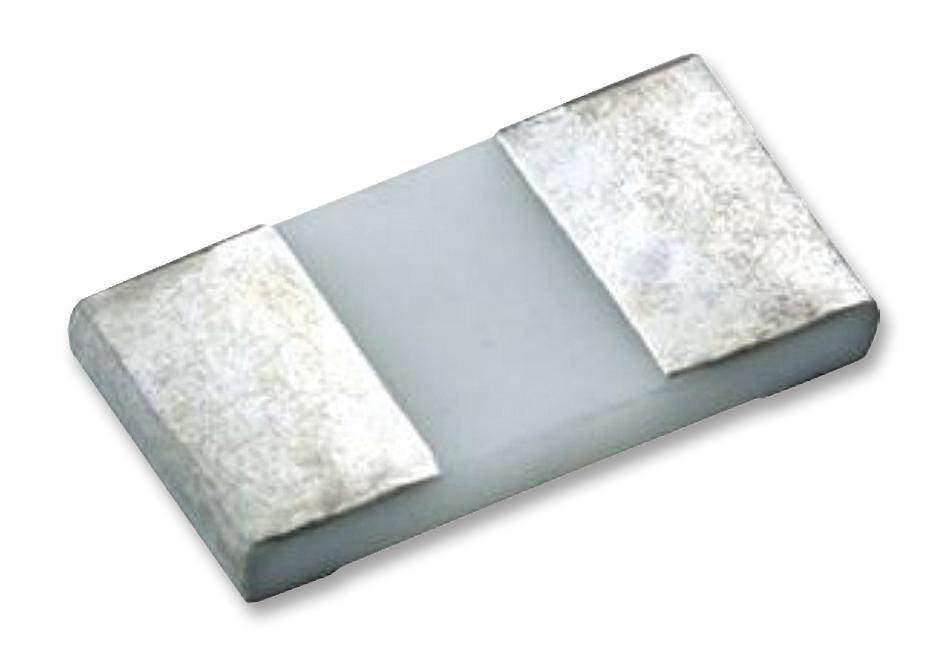

Vishay PHP01206E4990BST3 High Power Chip Resistor
The Vishay PHP series high power thin film wraparound chip resistor is designed with enlarged backside terminations to reduce thermal resistance, enabling effective heat dissipation for enhanced performance. It features a high purity ceramic substrate, power ratings up to 2.5 W, resistance ranges from 10 Ω to 30.1 kΩ with tolerances of ±0.1%, and a temperature coefficient of +25 ppm/°C. Widely used in power supplies, switching, motor control, and measurement applications, this resistor ensures stability and reliability under thermal stress.
Vishay PHP01206E4990BST3 High Power Chip Resistor Specifications:
- Power Rating: 2.5 W at +70°C
- Resistance Range: 10 Ω to 30.1 kΩ
- Tolerance: ±0.1%
- Temperature Coefficient: +25 ppm/°C
- Material: Nichrome resistive element, Alumina substrate
- Maximum Operating Temperature: +155°C
- Resistance Stability: 0.1% over 2000 hours at +70°C
- Environmental Resistance: UL 94 V-0 flame resistance, moisture resistance within limits
- Case Sizes: 0603, 0805, 1206, 2512
Buy the VISHAY PHP – Reliable High Power Thin Film Resistor for Industrial Applications
Purchase the Vishay PHP series high power thin film chip resistor online now to enjoy reliable performance in power supplies, motor controls, and measurement systems. Designed with enlarged backside terminations, it offers excellent thermal management, high accuracy, and stability up to 2.5 W. Available in resistance values from 10 Ω to 30.1 kΩ with ±0.1% tolerance, this resistor ensures your circuit's durability under thermal stress. Shop now for fast delivery and quality guaranteed.
Order your Vishay PHP series high power thin film wraparound chip resistor today and ensure your electronic projects benefit from dependable heat dissipation and long-term stability.
Frequently Asked Questions
Where can I buy Vishay PHP01206E4990BST3?
You can click on the BUY or RFQ button to purchase PHP01206E4990BST3 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part PHP01206E4990BST3?
You can download the PHP01206E4990BST3 datasheet or visit the Vishay website for support.
Who is the manufacturer of PHP01206E4990BST3?
Vishay
