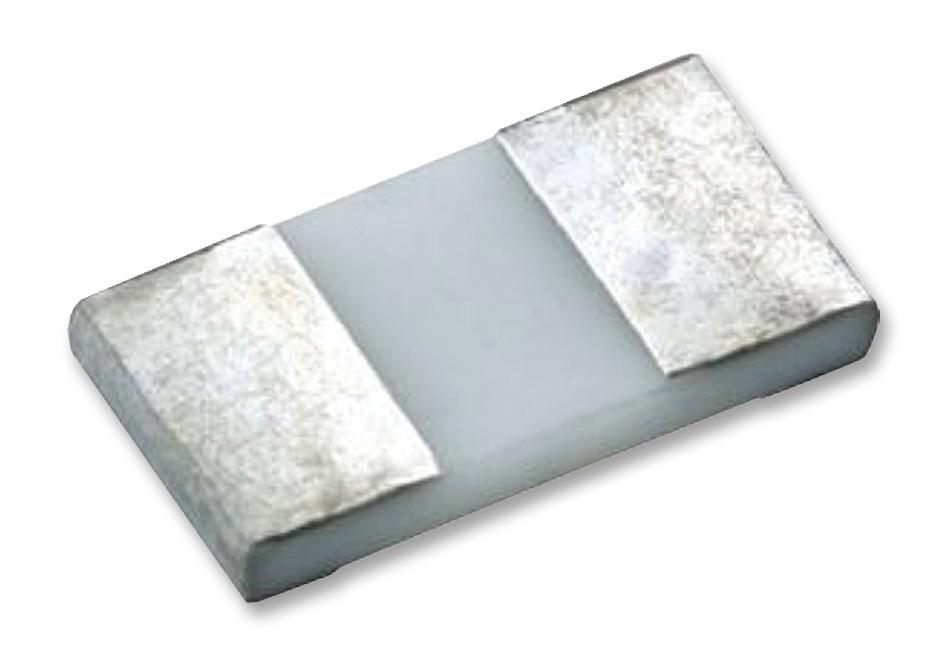

Vishay PHP02512E75R0BST3 High Power Thin Film Resistor
The Vishay PHP series high power thin film wraparound chip resistor offers excellent thermal management with a 2.5W power rating and resistance range from 10.2Ω to 30.1kΩ. Constructed with a high purity ceramic substrate and nickel barrier terminations, this resistor features a tight tolerance of ±0.1% and a TCR of +25 ppm/°C, ensuring precise performance. Suitable for power supplies, switching, motor circuits, and test equipment, it provides reliable operation across a temperature range of -55°C to +125°C, with UL 94 V-0 flame resistance. Designed for high stability and low noise, this resistor is ideal for demanding electronic applications.
Vishay PHP02512E75R0BST3 High Power Thin Film Resistor Specifications:
- Power Rating: 2.5 W (at +70°C)
- Resistance Range: 10.2Ω to 30.1kΩ
- Tolerance: ±0.1%
- Temperature Coefficient: +25 ppm/°C
- Maximum Operating Temperature: +125°C
- Survivable Temperature Range: -55°C to +150°C
- Resistive Element: Nichrome
- Substrate Material: Alumina (Al₂O₃)
- Terminations: Tin/lead solder over nickel barrier (Pb), Tin/silver/copper (Sn96.5Ag3.0Cu0.5) for RoHS compliant version
- UL Flame Resistance: UL 94 V-0
- Voltage Range: 100V for 1206, 200V for 2512
- Length: 0.126 inches (1206), 0.259 inches (2512)
- Width: 0.068 inches (1206), 0.124 inches (2512)
- Thickness: 0.018/0.033 inches (1206), 0.018/0.033 inches (2512)
- Thermal Performance: Chip surface temperature up to 200°C under load
- Reliability: Life at +70°C for 2000 hours within ±0.01%
- Environmental Stability: Resistance temperature characteristic 25 ppm/°C, moisture resistance, thermal shock, and high-temperature exposure tested
Buy the Vishay Series PHP High Power Thin Film Wraparound Chip Resistor: PHP02512E75R0BST3
Enhance your electronic projects with the Vishay PHP series high power thin film resistor. Featuring a 2.5W power rating, ±0.1% tolerance, and a wide resistance range, it offers exceptional stability, low noise, and flame-resistant construction. Ideal for power supplies, motor control, testing, and high-temperature applications, it ensures reliable operation from -55°C to +125°C. Its robust alumina substrate and precision terminations guarantee durability and consistent performance, making it the perfect choice for engineers seeking quality and longevity in their designs.
Buy Vishay PHP02512E75R0BST3 high power resistor now and experience unmatched reliability and performance in demanding electronic circuits.
Frequently Asked Questions
Where can I buy Vishay PHP02512E75R0BST3?
You can click on the BUY or RFQ button to purchase PHP02512E75R0BST3 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part PHP02512E75R0BST3?
You can download the PHP02512E75R0BST3 datasheet or visit the Vishay website for support.
Who is the manufacturer of PHP02512E75R0BST3?
Vishay
