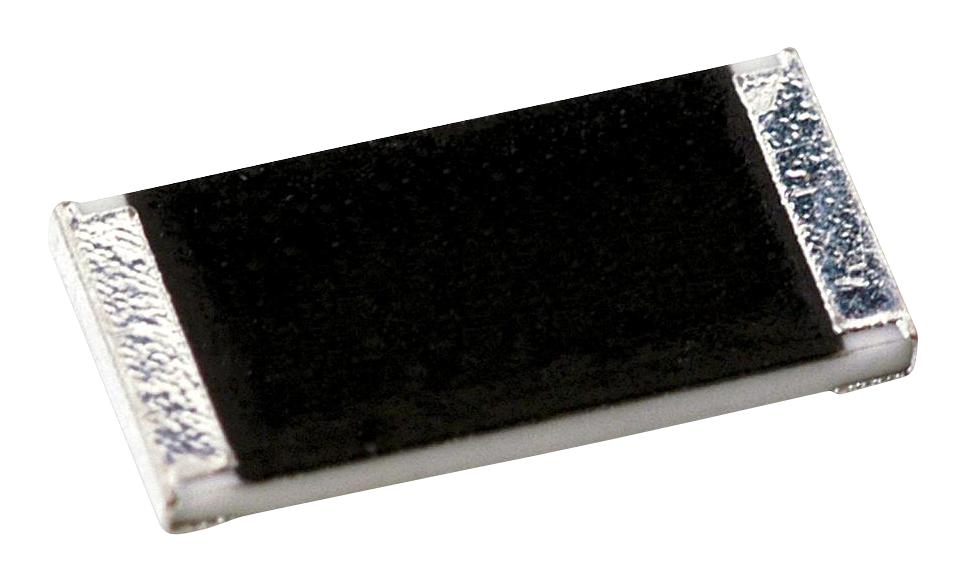

Vishay PLT0805Z5001AST5 Precision Thin Film Resistor
Vishay Dale Thin Film precision low TCR surface mount chip resistor offers exceptional stability, low noise, and ultra-low temperature coefficient tailored for high-accuracy applications. Constructed with passivated Nichrome resistive film on alumina substrates, these resistors achieve TCR as low as +5 ppm/°C and tolerances down to ±0.01%. Suitable for precision circuits, they withstand high temperatures, humidity, and soldering processes, ensuring reliability over extended periods. Available in various sizes such as 0603, 0805, 1206, 2010, and 2512, with resistance values from 100 Ω up to 3 MΩ, meeting stringent industry standards with RoHS compliance.
Vishay PLT0805Z5001AST5 Precision Thin Film Resistor Specifications:
- Resistance Range: 100 Ω to 3 MΩ
- TCR: +5 ppm/°C to +10 ppm/°C
- Tolerance: +0.01% to +0.1%
- Operating Temperature: -55°C to +125°C
- Storage Temperature: -55°C to +150°C
- Power Ratings: 150 mW (0603), 250 mW (0805), 400 mW (1206), 800 mW (2010), 1000 mW (2512)
- Working Voltage: 75 V to 200 V
- Material: Passivated Nichrome resistive film on alumina substrate
- Environmental Stability: AR + 0.02% at 70°C after 2000 hours
- Voltage Coefficient: 0.1 ppm/V (typical)
- Surface Mount Case Sizes: 0603, 0805, 1206, 2010, 2512
Buy the Vishay PLT – Reliable Precision Low TCR Thin Film Resistor for Industrial Applications
Order Vishay PLT0805Z5001AST5 online today to ensure your projects benefit from high accuracy, ultra-low TCR, and superior stability. These surface mount resistors are designed for demanding industrial and electronic applications requiring low noise and excellent thermal stability. Available in multiple sizes, resistance ranges, and tolerances, they meet international standards including RoHS compliance. Experience reliable performance with Vishay’s proven thin film technology—perfect choices for precision circuits needing long-term stability and high reliability. Purchase now and enhance your electronic solutions.
Get Vishay PLT0805Z5001AST5 today—built for precision, stability, and long-lasting durability in your circuit designs.
Frequently Asked Questions
Where can I buy Vishay PLT0805Z5001AST5?
You can click on the BUY or RFQ button to purchase PLT0805Z5001AST5 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part PLT0805Z5001AST5?
You can download the PLT0805Z5001AST5 datasheet or visit the Vishay website for support.
Who is the manufacturer of PLT0805Z5001AST5?
Vishay
