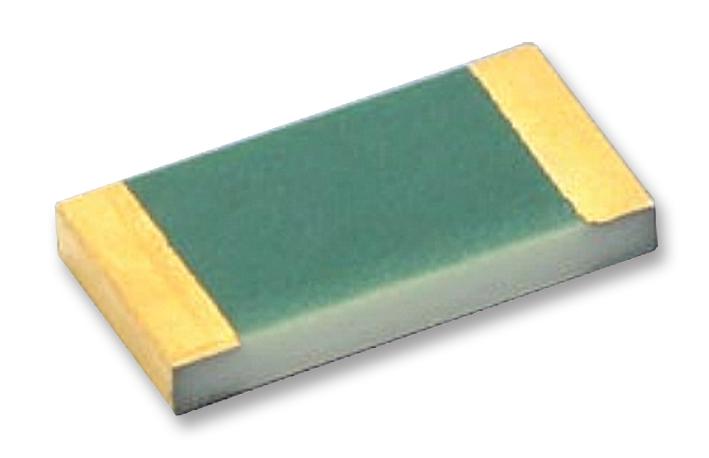

Vishay PLTT0805Z1002AGTS High Temperature Surface Mount Resistor
Vishay Dale Thin Film precision low TCR high temperature surface-mount chip resistor offers exceptional stability and ultra-low noise in a compact 0805 case size, operating from -55°C to 215°C. With a TCR of +5 ppm/°C, 0.02% tolerance, and gold terminations, it is ideal for automotive, oil industry, and high-reliability applications. Features include passivated Nichrome resistive film, resistance range from 75 ohms to 3 MΩ, and compliance with RoHS and AEC-Q200 standards for durability, stability, and low voltage coefficients.
Vishay PLTT0805Z1002AGTS High Temperature Surface Mount Resistor Specifications:
- Case Size: 0805
- Resistance Range: 75 Ω to 3 MΩ
- TCR: +5 ppm/°C
- Tolerance: 0.02%
- Operating Temperature: -55°C to +215°C
- Voltage Rating: 100 V to 200 V
- Material: Passivated Nichrome resistive film with gold terminations
- Stability: 0.5% at 2000 hours at 215°C, 25% rated power
- Certification: RoHS compliant, AEC-Q200 qualified
- Environmental Resistance: MIL-STD-202 standards
- Dimensions: 0.080 x 0.050 inches ±0.006 inches (L x W)
Buy the Vishay Series PLTT High Temperature Resistor: PLTT0805Z1002AGTS
Order the Vishay PLTT0805Z1002AGTS high temperature surface mount resistor online today. Designed for precision and stability with a TCR of +5 ppm/°C, it offers 0.02% tolerance and exceptional performance from -55°C to 215°C. With a compact 0805 case, gold terminations, and compliance with industry standards, it’s ideal for automotive, industrial, and oil industry applications. Ensure your projects benefit from reliable, long-lasting resistance components by purchasing now for quick delivery and consistent quality.
Get Vishay PLTT0805Z1002AGTS today—built for precision, stability, and long-lasting durability in high-temperature environments.
Frequently Asked Questions
Where can I buy Vishay PLTT0805Z1002AGTS?
You can click on the BUY or RFQ button to purchase PLTT0805Z1002AGTS from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part PLTT0805Z1002AGTS?
You can download the PLTT0805Z1002AGTS datasheet or visit the Vishay website for support.
Who is the manufacturer of PLTT0805Z1002AGTS?
Vishay
