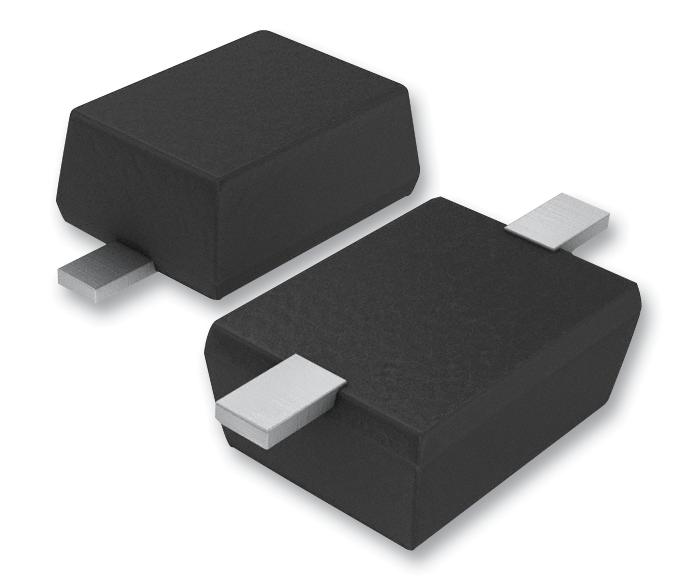

Vishay PLZ20BG3H Zener Diode
The Vishay PLZ Series Zener diodes are ultra-small, silicon planar components designed for power dissipation of 500 mW. Encased in a low-profile DO-219AC (MicroSMF) package, they feature low leakage current, excellent stability, and high temperature soldering capability up to 260°C / 10s at RoHS-compliant terminals. These diodes are wave and reflow solderable, qualified to AEC-Q101 standards, and suitable for precision voltage regulation and transient suppression in various electronic circuits, making them ideal for automotive, industrial, and consumer applications requiring reliable voltage clamping with compact size.
Vishay PLZ20BG3H Zener Diode Specifications:
- Package: DO-219AC (MicroSMF)
- Maximum Power Dissipation: 500 mW at 85°C, 960 mW at 25°C on FR4 board
- Peak Pulse Power: 100 W (8/20 µs IEC 61000-4-5)
- Junction Temperature: 150°C
- Storage Temperature: -85°C to +150°C
- Thermal Resistance Junction to Ambient: 130 K/W
- Forward Voltage: 0.9 V at 10 mA
- RoHS and REACH compliant
- Wave and reflow solderable, soldering temperature up to 260°C for 10 seconds
- Qualification: AEC-Q101
- Current Range: 5 to 20 mA for test conditions
- ESD immunity: IEC 61000-4-2, 20 kV typical at 330 pF
- Voltage Range: 201V to 300V depending on part number
- Circuit broad application: voltage regulation, transient suppression, circuit protection
Buy the Vishay Series PLZ 500 mW Zener Diode: PLZ20BG3H
Purchase the Vishay Series PLZ20BG3H Zener diode online today and benefit from this high-performance, RoHS-compliant component. Its compact size, high power dissipation, low leakage current, and excellent thermal stability make it ideal for voltage regulation, transient suppression, and circuit protection in automotive, industrial, and consumer electronics. The diode features a robust DO-219AC package, reflow and wave solderable design, and is qualified to AEC-Q101 standards. Ensure your projects are protected with this reliable, efficient, and easy-to-install diode—order now for quick delivery and guaranteed performance.
Order your Vishay Series PLZ20BG3H 500 mW Zener diode today and ensure reliable voltage regulation for your industrial and automotive projects.
Frequently Asked Questions
Where can I buy Vishay PLZ20BG3H?
You can click on the BUY or RFQ button to purchase PLZ20BG3H from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part PLZ20BG3H?
You can download the PLZ20BG3H datasheet or visit the Vishay website for support.
Who is the manufacturer of PLZ20BG3H?
Vishay
