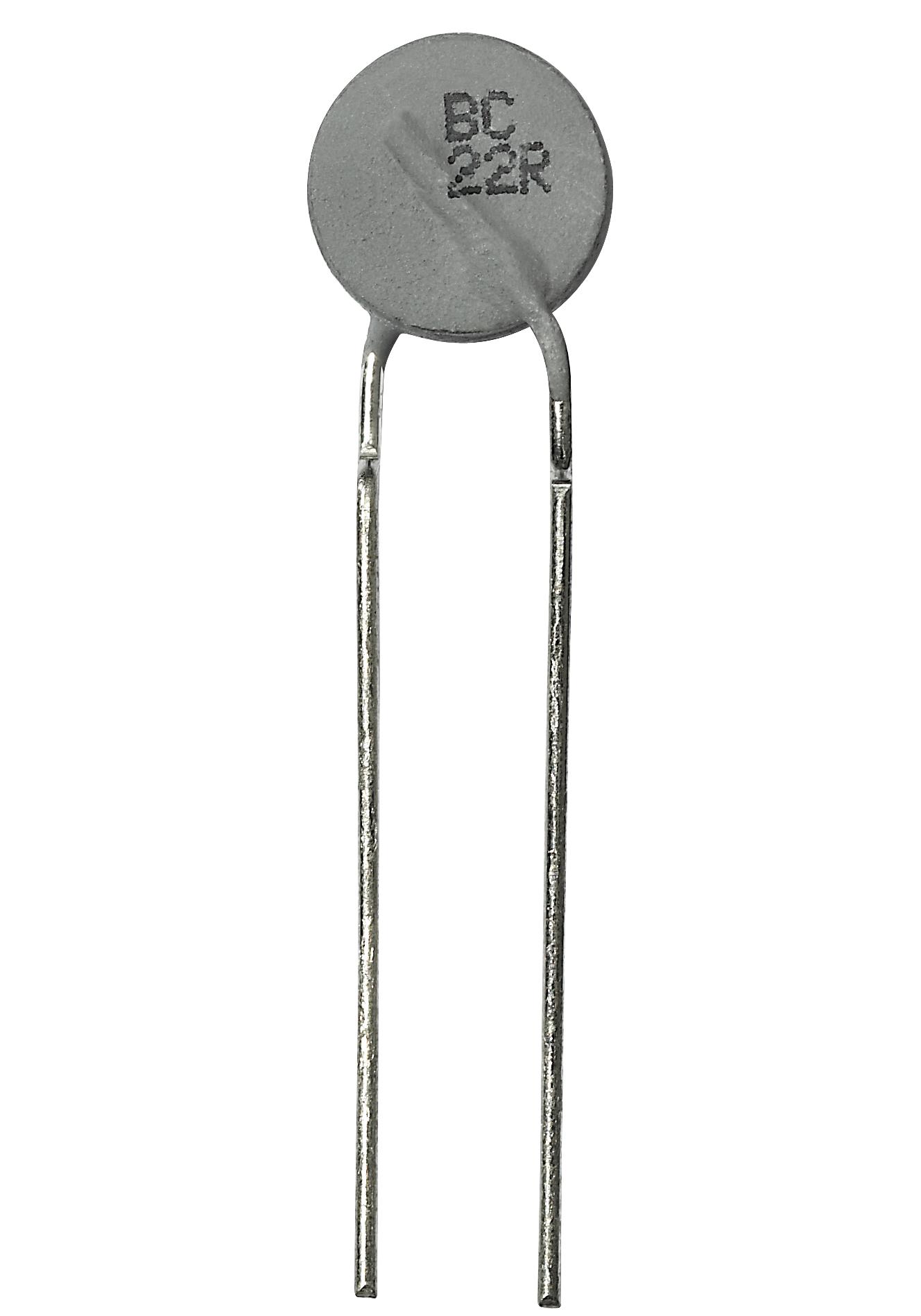

Vishay PTCCL07H111HBE Overload Protection Thermistor
The PTCCL series PTC thermistor is designed for overload protection in electrical and electronic devices. This ceramic-based, directly heated thermistor features a positive temperature coefficient, providing reliable protection against overload conditions. It consists of a ceramic pellet soldered between two tinned copper-clad steel wires and coated with a high-temperature, UL94V-0 rated silicone lacquer. The thermistor can be mounted via wave, reflow, or hand soldering methods, although mounting, wiring, and encapsulation can influence its thermal and electrical performance. Standard operation occurs in still air; potting or encapsulation is not recommended as it can alter operating characteristics. The thermistor offers a wide range of trip and non-trip currents from 11mA to 800mA, with a small trip to non-trip current ratio of 1.5 at 25°C. It supports high inrush currents up to 5.5A and features robust construction suitable for mechanical stresses and vibration. Conforms to UL standard UL1434 (UL file E148885) and IEC 60738, making it suitable for safety, industrial, and consumer electronics applications.
Vishay PTCCL07H111HBE Overload Protection Thermistor Specifications:
- Maximum voltage: 265 V
- Maximum current: 0.011 to 0.8 A
- Resistance at 25°C: 2.1 to 3000 Ω
- Resistance tolerance: ±20%
- Maximum overload current: 0.8 to 5.5 A
- Switching temperature: 136 to 145 °C
- Operating temperature range: 0 to 70 °C at max voltage
- Storage temperature: -40 to +175 °C
- CRI: UL listed UL1434, IEC 60738 compliant
- Mounting: Wave, reflow, or hand soldering
- Material: Ceramic pellet with UL94V-0 silicone lacquer coating
- Lead wires: Tinned copper-clad steel wires
- Certifications: UL, RoHS compliant
Buy the Vishay Series PTCCL Overload Protection Thermistor: PTCCL07H111HBE
Secure your electronic systems with the Vishay Series PTCCL overload protection thermistor. Designed for high inrush currents and reliable overload protection, it features ceramic construction and UL IEC certifications. Perfect for industrial, consumer electronics, and data processing equipment, the thermistor supports mounting via wave, reflow, or hand soldering, withstanding mechanical stress and vibration. Its wide current range from 11mA to 800mA and temperature resilience ensure long-term durability and safety. Get it online now for dependable overload safeguarding.
Order your Vishay Series PTCCL PTCCL07H111HBE overload protection thermistor today and ensure reliable safety and performance in your electronic devices.
Frequently Asked Questions
Where can I buy Vishay PTCCL07H111HBE?
You can click on the BUY or RFQ button to purchase PTCCL07H111HBE from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part PTCCL07H111HBE?
You can download the PTCCL07H111HBE datasheet or visit the Vishay website for support.
Who is the manufacturer of PTCCL07H111HBE?
Vishay
