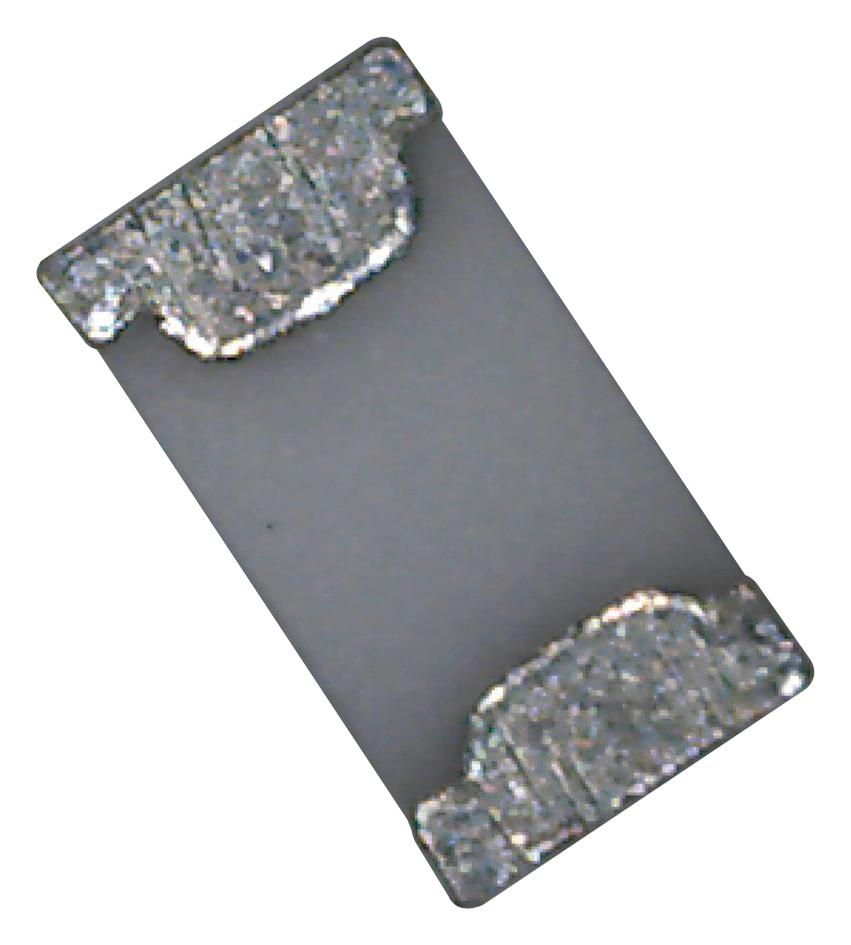

Vishay PTS060301B100RP100 Platinum Temperature Sensor
The PTS Series Platinum SMD Flat Chip Temperature Sensor is designed for accurate temperature measurement in electronic systems operating under various environmental conditions. Utilizing advanced thin film platinum technology, it offers high stability, quick response times (below 2 seconds in air), and complies with IEC 60751 standards. The sensor supports lead-free soldering and is suitable for applications in test and measurement, automation, avionics, industrial, and medical fields. Its robust construction ensures reliable operation even in harsh environments, making it an ideal choice for precise temperature control.
Vishay PTS060301B100RP100 Platinum Temperature Sensor Specifications:
- Resistance values: 100.0 Ω at 0°C, tolerance classes F0.3, F0.6
- Temperature coefficient: +3850 ppm/°C
- Operating temperature range: -55°C to +155°C
- Long term stability: <0.04% change after 1000 hours at +155°C
- Insulation resistance: >10 MΩ
- Measurement current: 0.1 mA to 0.4 mA
- Self-heating in still air: <0.9 K/mW
- Flowing water (v=0.4m/s): <0.38 K/mW
- Flowing air (v=3 m/s): <2.08 K
- Dimensions (e.g., PTS 0603): H 0.45+0.1/-0.05 mm, L 1.55+0.05 mm, W 0.85 mm
- Weight (e.g., PTS 0603): 1.9 mg
- Solder pad dimensions: G=0.55 mm, Y=1.1 mm, Z=1.1 mm for PTS 0603; similar scaled for other sizes
- Compliance: IEC 60751, RoHS, WEEE, halogen-free
- Package: Tape and reel, suitable for automated SMD placement
Buy the Vishay Series PTS Platinum Temperature Sensor: PTS060301B100RP100
Purchase the Vishay PTS060301B100RP100 platinum temperature sensor online and ensure reliable, quick, and accurate temperature measurement for industrial, medical, or avionics systems. Designed for automated assembly, it supports lead-free soldering and meets strict IEC standards. Its high stability and fast response time make it ideal for demanding environments. Order now to take advantage of quick shipment, extensive testing, and the assurance of a top-quality component tailored for precision temperature control in your professional electronics projects.
Get Vishay PTS060301B100RP100 today—built for precision and long-lasting durability in temperature measurement applications.
Frequently Asked Questions
Where can I buy Vishay PTS060301B100RP100?
You can click on the BUY or RFQ button to purchase PTS060301B100RP100 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part PTS060301B100RP100?
You can download the PTS060301B100RP100 datasheet or visit the Vishay website for support.
Who is the manufacturer of PTS060301B100RP100?
Vishay
