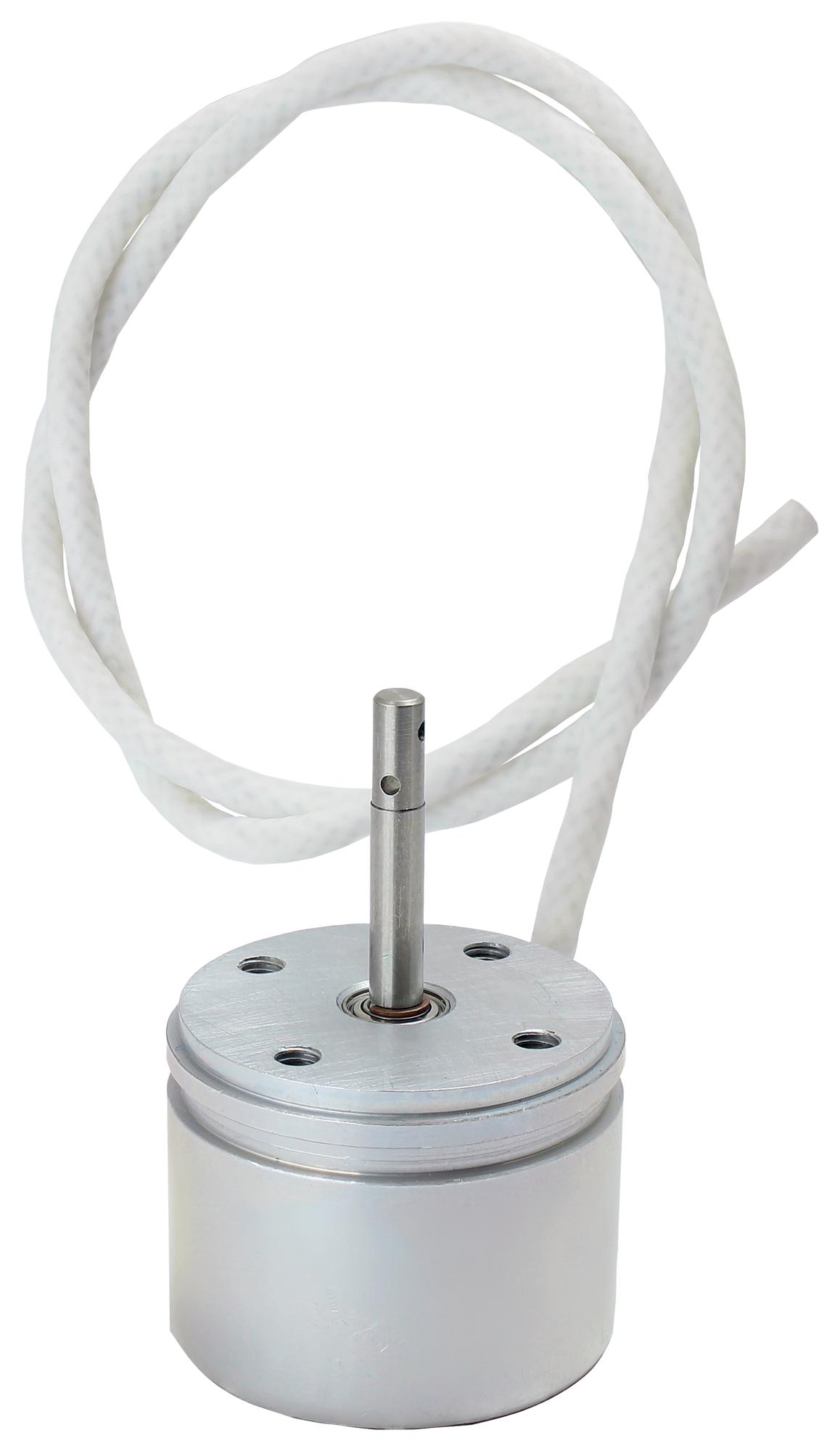

Vishay RAME027R10712AB Rotational Magnetic Encoder
The Vishay RAME027 is a rotational magnetic encoder sensor designed for industrial and railway applications. Utilizing Hall effect technology, it provides a 360° magnetic field measurement with high accuracy and resolution. The device features a stainless steel shaft, shielded cable connection, and is protected against harsh environments. Operating on 5V supply with low current consumption, it boasts fast response times, durable construction with a lifespan of 50 million cycles, and has IP56 protection. Suitable for precise displacement and angular position detection in complex automation systems.
Vishay RAME027R10712AB Rotational Magnetic Encoder Specifications:
- Sensor type: Rotational, magnetic technology
- Output type: Cable
- Dimensions: 11/16" (27 mm)
- Voltage supply: 5V+0.25V
- Current supply: < 20 mA at 5 V
- Output voltage: From 0.5 Voc to 4.5 Voc
- Electrical angle: 360°
- Absolute accuracy at 25 °C: + 1.2° on 359° (0.33 %)
- Absolute accuracy at -25 °C to +85 °C: + 2.1° on 359° (0.58 %)
- Resolution: 0.09° (~ 12 bits)
- Response time: 1 ms
- Mechanical angle: 360°
- Weight: < 50 g (with 250 mm cable)
- Operating temperature: -25 °C to +75 °C
- Protection class: IP56
- Vibration resistance: CEI 61373, class B
- Life cycle: 50 million cycles
Buy the Vishay RAME027 – Reliable Magnetic Encoders for Industrial Applications
Discover the Vishay RAME027 rotational magnetic encoder, engineered for industrial and railway applications. Featuring Hall effect technology, 360° measurement, IP56 protection, and high accuracy, this sensor ensures reliable performance in demanding environments. Its robust stainless steel shaft and shielded cable connection provide durability and ease of installation. Operating on 5V with low power consumption and fast response time, it’s ideal for precise displacement and angle detection in automation systems. Buy online today and improve your project’s reliability and efficiency.
Order your Vishay RAME027 series magnetic encoder today and enhance the precision of your industrial and railway automation projects with dependable magnetic sensors.
Frequently Asked Questions
Where can I buy Vishay RAME027R10712AB?
You can click on the BUY or RFQ button to purchase RAME027R10712AB from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part RAME027R10712AB?
You can download the RAME027R10712AB datasheet or visit the Vishay website for support.
Who is the manufacturer of RAME027R10712AB?
Vishay
