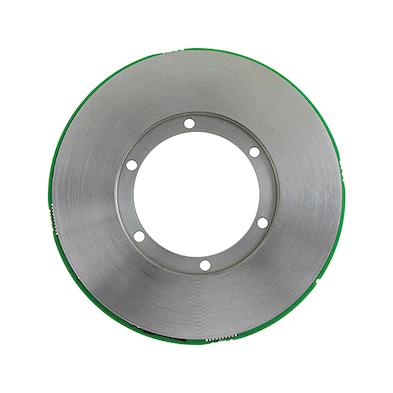

Vishay RAMK060M11319JB663 Rotary Magnetic Encoder
The Vishay RAMKO60 is a high-precision rotational magnetic encoder with a 60 mm diameter, suitable for robotics and industrial applications. It features magnetic technology, high resolution up to 0.001° with 19-bit angle value, and repeatability > 16 bits. The device supports multiple communication protocols including SSI, Biss-C, and SPI, and offers options for multi-turn counting with or without battery backup. It is designed for harsh conditions, not sensitive to external magnetic fields, moisture, or pollution, and includes built-in self-monitoring and self-calibration functionalities for optimal performance.
Vishay RAMK060M11319JB663 Rotary Magnetic Encoder Specifications:
- Sensor type: Rotational, magnetic technology
- Dimensions: Diameter 60 mm
- Output protocols: SSI, Biss-C, SPI
- Voltage power supply: 5 V ±0.25 V
- Supply current: <180 mA
- Electrical angle: 360°
- Accuracy at 25°C: Better than 13 bits (0.0449°)
- Resolution: 0.001° (18.35 bits, 335,872 points)
- Repeatability: >16 bits
- Maximum speed rotation: 10,000 rpm
- Environmental conditions: -40°C to +85°C operating temperature
- Humidity: <80%, no condensing
- Self-calibration: Yes, with LED indication
- Multi-turn counter: 16 bits, with or without external rechargeable battery
- Magnetic shielding: Yes, not sensitive to external magnetic interference
- Mounting features: Compatible with standard industrial mounting interfaces
- Material: Magnetic disk protected surface, stainless steel alloy for rotor
- Compliance: RoHS compliant
Buy the Vishay Series RAMKO60 Rotary Magnetic Encoder: RAMK060M11319JB663
Experience the high-precision rotational sensing of the Vishay RAMKO60 encoder. With multiple communication protocols such as SSI, Biss-C, and SPI, it offers exceptional resolution of 0.001° and robust multi-turn counting. Designed for harsh industrial and robotics applications, it features built-in self-monitoring and self-calibration to ensure consistent performance. Its durable construction withstands vibrations, shocks, moisture, and pollution, making it an excellent choice for demanding environments. Purchase online today to enhance your automation and control systems with reliable motion sensing technology.
Get Vishay RAMK060M11319JB663 today—built for precision and long-lasting durability in industrial environments.
