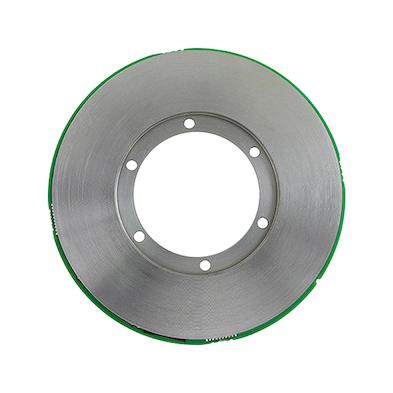

Vishay RAMK060M11319LB659 Rotational Magnetic Encoder
The Vishay RAMKO60 is a high-precision rotational magnetic encoder designed for industrial and robotics applications. It features a diameter of 60 mm and utilizes Hall effect technology for accurate, high-resolution measurements with multi-turn and single-turn variants. The encoder offers plug-and-play and self-calibration options, memorizes last position before power-off, and is resistant to external magnetic fields, moisture, shocks, and vibrations. It supports multiple communication protocols including SSI, Biss-C, and SPI, with optional multi-turn counters and backup battery features for continuous operation. Its robust construction ensures reliable performance in harsh environments, making it ideal for precise angle detection and control systems.
Vishay RAMK060M11319LB659 Rotational Magnetic Encoder Specifications:
- Sensor type: Rotational, magnetic technology
- Dimensions: Diameter 60 mm
- Power supply: 5 V ± 0.25 V
- Supply current: < 180 mA
- Accuracy: Better than 13 bits at 25°C (approx. 0.0449°)
- Resolution: 0.001° (18.35 bits, 335,872 points)
- Maximum rotation speed: 10,000 rpm
- Mechanical angle: 360°
- Environmental temperature: -40°C to +85°C
- Communication interfaces: SSI, Biss-C, SPI
- Multi-turn counter: 16-bit, with optional backup battery
- Magnetic protection: Resists external magnetic fields up to 50 mT
- Material: Housing protected, RoHS compliant
- Mounting: Compatible with customer interfaces, self-monitoring, and calibration features
Buy the Buy Vishay RAMKO60 Part Number RAMK060M11319LB659 Online
Enhance your automation and robotics projects with the Vishay RAMKO60 rotational magnetic encoder. Featuring high accuracy, multi-turn capabilities, and support for multiple communication protocols, this encoder guarantees precise angle detection and robust performance in harsh conditions. Its plug-and-play design and self-calibration feature simplify installation and maintenance. With optional multi-turn counters and backup batteries, you can ensure continuous operation even during power interruptions. Trust Vishay for reliable, advanced sensing solutions—order the RAMKO60 online today for fast delivery and technical support.
Order your Vishay SeriesRAMKO60 high-precision magnetic encoder today and ensure reliable, accurate angle measurement in demanding industrial environments.
