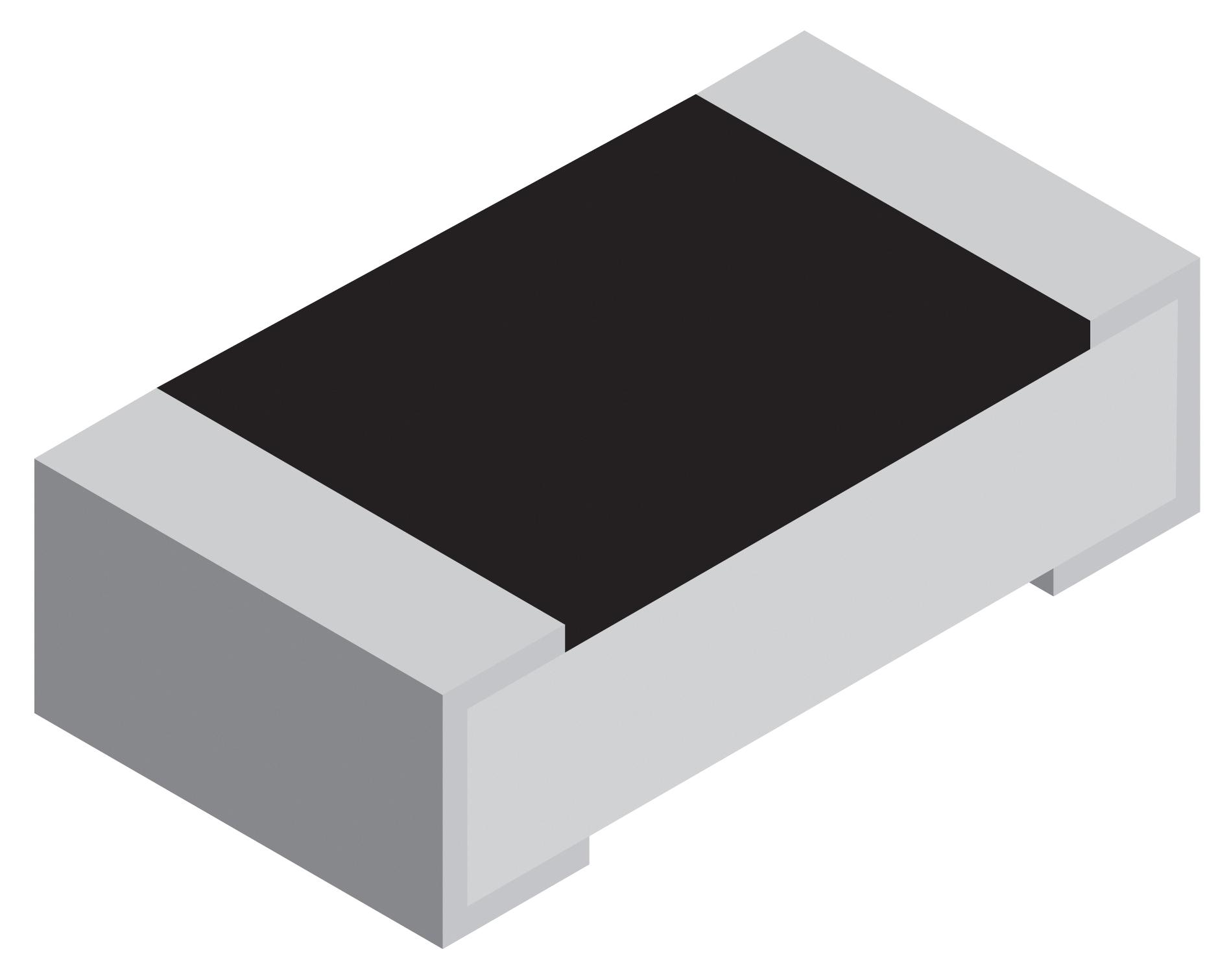

Vishay RCC04021K00FKED Medium Power Chip Resistor
The RCC e3 series consists of medium power thick film chip resistors designed for high reliability in automotive, industrial, and telecommunication applications. These resistors feature increased power ratings up to 0.25 W and operate at voltages up to 200 V. Manufactured with a cermet film and glass-over layer on high-grade ceramic substrates, they are suitable for automatic SMD assembly, wave, reflow, or vapor phase soldering. The resistors are RoHS-compliant, robust against environmental factors, and have a tight tolerance of ±5% with temperature coefficients ranging from 100 to 200 ppm/K, ensuring stable performance in demanding conditions.
Vishay RCC04021K00FKED Medium Power Chip Resistor Specifications:
- Size: RCCO0402 0402 mm (1.0 + 0.05) x 0.5 mm, height 0.35 mm
- Resistance range: 1 Ω to 10 MΩ
- Resistance tolerance: ±5%
- Temperature coefficient: 100 ppm/K (RCC0603, RCC0805), 200 ppm/K (RCC0402)
- Rated dissipation: 0.125 W (RCC0402), 0.2 W (RCC0603), 0.25 W (RCC0805)
- Maximum operating voltage: 75 V (RCC0402), 150 V (RCC0603), 200 V (RCC0805)
- Permissible film temperature: 155°C
- Operating temperature range: -55°C to +155°C
- Environmental robustness: resistant to solvents, with high mechanical stability
- Material: Cermet film on ceramic substrate with pure tin plated terminations
- Compliance: RoHS, AEC-Q200 qualified
- Dimensions for RCCO0402: L 1.0+0.05, W 0.5, H 0.35
- Package options include tape and reel for automated assembly
Buy the Buy Vishay Medium Power Thick Film Chip Resistors Part Number RCC0603 Online
Order Vishay RCC0603 medium power thick film chip resistor online today for reliable performance in automotive, industrial, and telecommunication applications. These resistors feature a power rating up to 0.2 W, operate at voltages up to 150 V, and have a resistance tolerance of ±5%. Built on high-grade ceramic substrates with cermet film layers, they are RoHS compliant and suitable for automatic SMD assembly, wave, reflow, or vapor phase soldering. Ensuring thermal stability, mechanical robustness, and environmental resistance, they are ideal for high-reliability electronic systems that demand durability and precision.
Get Vishay RCC0603 today—built for high reliability, increased power, and stable performance in demanding industrial and automotive electronics.
Frequently Asked Questions
Where can I buy Vishay RCC04021K00FKED?
You can click on the BUY or RFQ button to purchase RCC04021K00FKED from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part RCC04021K00FKED?
You can download the RCC04021K00FKED datasheet or visit the Vishay website for support.
Who is the manufacturer of RCC04021K00FKED?
Vishay
