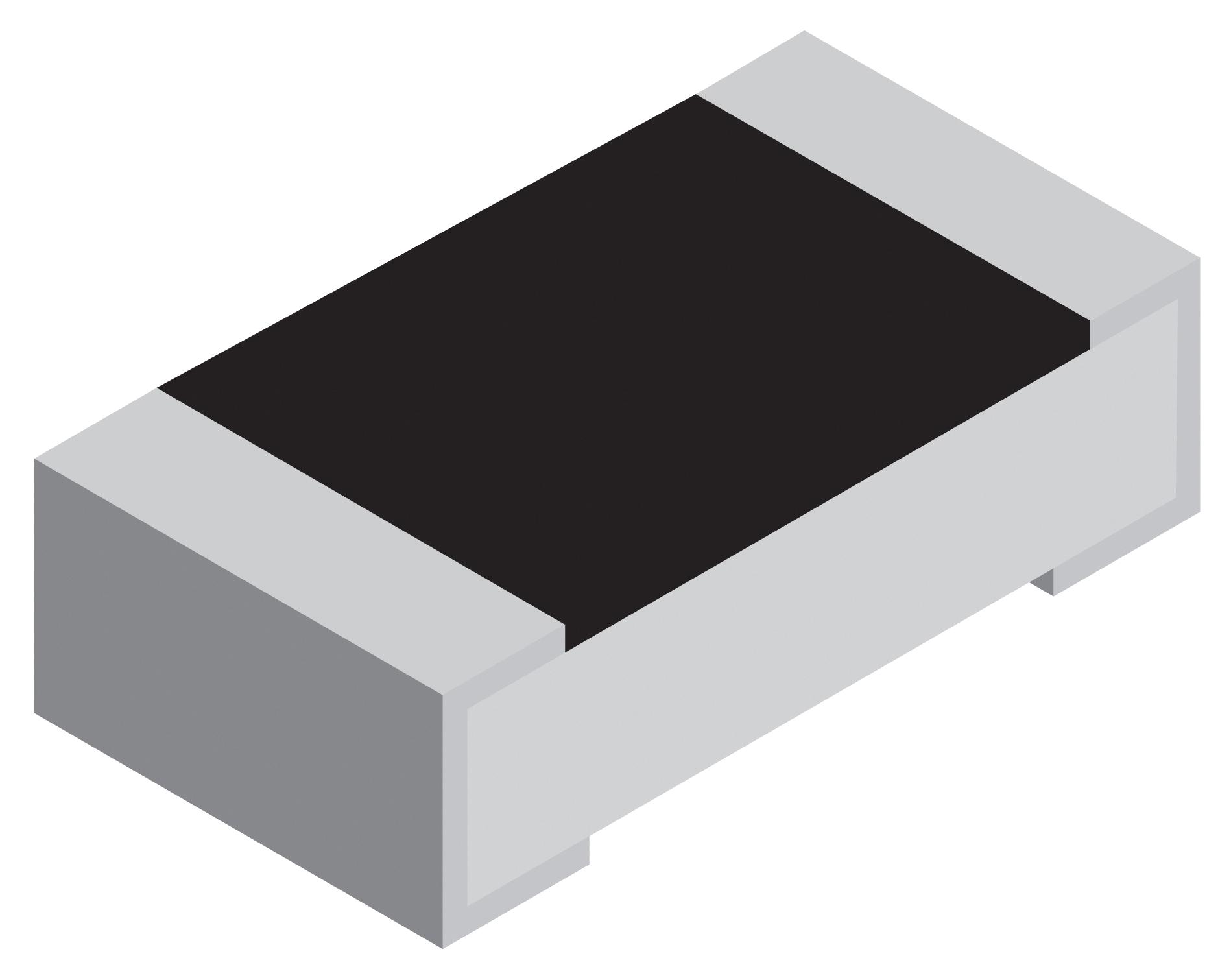

Vishay RCC04022K00FKED Thick Film Chip Resistor
The Vishay RCC e3 series consists of high-reliability, medium power thick film chip resistors designed for automotive, industrial, and telecommunication applications. Featuring increased power ratings up to 0.25 W and operating voltages up to 200 V, these resistors utilize a cermet film layer on high-grade ceramic substrates with precision trimming for stability. They are RoHS-compliant, suitable for automatic SMT processes, and have a robust protective coating with pure tin plating, ensuring long-term durability and resistance to environmental factors.
Vishay RCC04022K00FKED Thick Film Chip Resistor Specifications:
- Size options: 0402, 0603, 0805
- Resistance range: 1 Ω to 10 MΩ
- Power dissipation: 0.125 W (0402), 0.2 W (0603), 0.25 W (0805)
- Operating voltage: up to 200 V
- Temperature coefficient: ±200 ppm/K or ±100 ppm/K depending on model
- Resistance tolerance: ±5%
- Film temperature: Max 155°C
- Operating temperature: -55°C to +155°C
- Dimensions: RCC0402 (1.0 x 0.5 x 0.35 mm), RCC0603 (1.55 x 0.85 x 0.45 mm), RCC0805 (2.0 x 1.25 x 0.45 mm)
- RoHS compliant, lead-free tin plating, suitable for wave and reflow soldering
- Qualified to AEC-Q200, suitable for demanding automotive and industrial environments
- Protective coating for mechanical and climatic stability
Buy the Vishay Series e3 Thick Film Chip Resistors: RCC0603 1K 5% Reliable Precision
Discover the reliability and high power handling of Vishay Series e3 thick film chip resistors. Perfect for demanding automotive, industrial, and telecommunication applications, these resistors offer power ratings up to 0.25 W and operate at voltages up to 200 V. Manufactured with precision technology, they feature advanced protective coatings and RoHS compliance for environmental safety. Whether you need surface-mount technology for automated assembly or long-term stability in harsh conditions, these resistors deliver excellent performance, durability, and ease of integration for any advanced electronic design.
Order your Vishay Series e3 RCC0603 1K 5% high-reliability resistors today and ensure consistent performance for your automotive and industrial projects.
Frequently Asked Questions
Where can I buy Vishay RCC04022K00FKED?
You can click on the BUY or RFQ button to purchase RCC04022K00FKED from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part RCC04022K00FKED?
You can download the RCC04022K00FKED datasheet or visit the Vishay website for support.
Who is the manufacturer of RCC04022K00FKED?
Vishay
