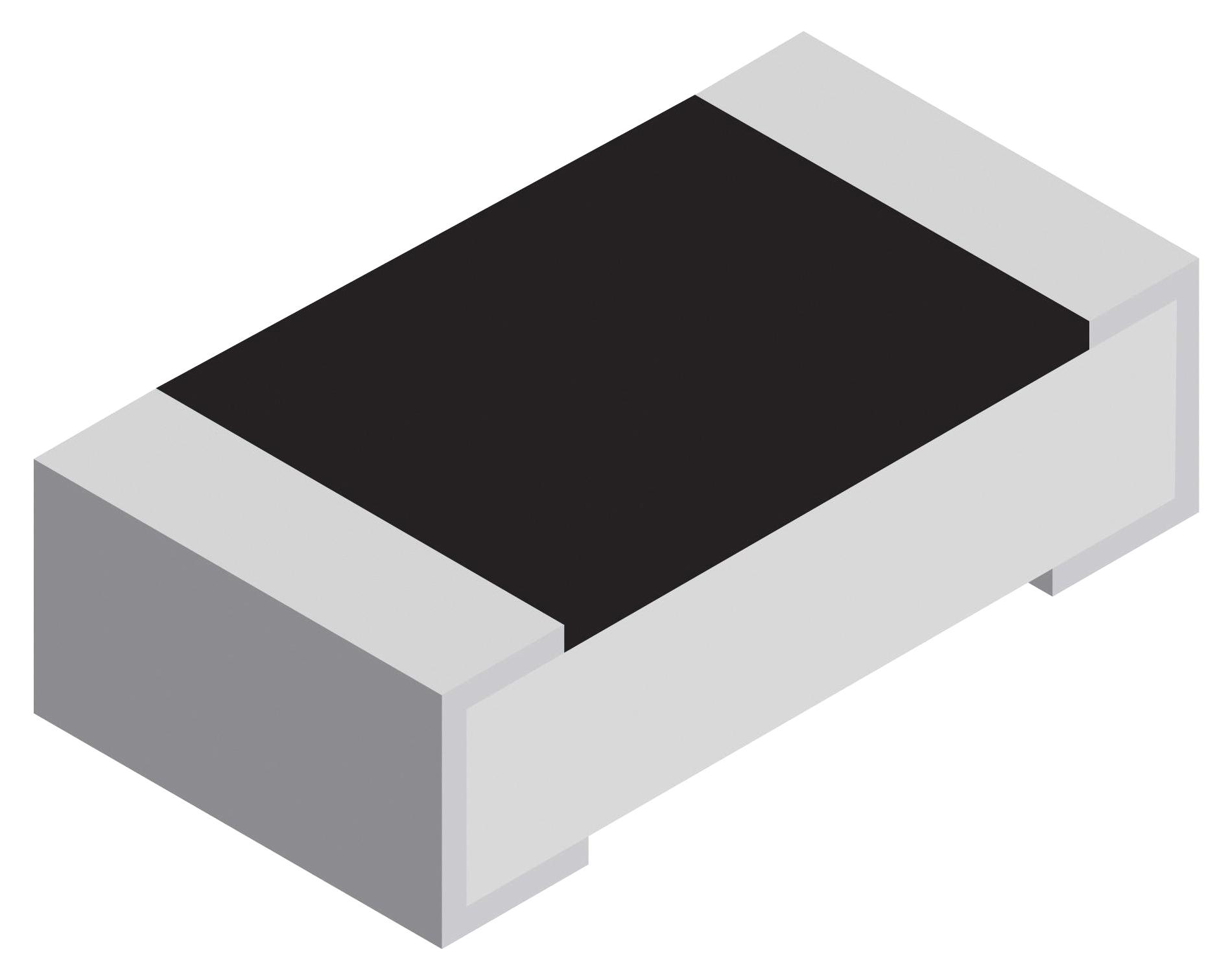

Vishay RCC0603470KFKEA High-Power Thick Film Resistor
The RCC e3 series comprises high-reliability medium power thick film chip resistors designed for automotive, industrial, and telecommunications applications. They feature increased power ratings up to 0.25 W, higher operating voltages up to 200 V, and are qualified to AEC-Q200 standards. Manufactured on high-grade ceramic substrates with precision laser trimming and protective coverings, these resistors provide excellent performance over temperature ranges from -55°C to +155°C. Suitable for surface-mount assembly, they are RoHS-compliant, with a solderable tin finish and resistance values from 1 Ω to 10 MΩ with ±5% tolerance.
Vishay RCC0603470KFKEA High-Power Thick Film Resistor Specifications:
- Size: RCC0402, RCC0603, RCC0805
- Resistance Range: 1 Ω to 10 MΩ
- Resistance Tolerance: ±5%
- Temperature Coefficient: ±200 ppm/K
- Rated Dissipation: Up to 0.25 W
- Maximum Voltage: 75 V to 200 V (depending on size)
- Film Temperature Max: 155°C
- Operating Temperature Range: -55°C to +155°C
- Body Material: Ceramic substrate with cermet film layer
- Termination: Pure tin on nickel plating
- Dimensions: Lengths and widths per size, e.g., RCC0603 approx. 1.55 x 0.85 mm
- Compliance: RoHS, AEC-Q200 qualified
- Assembly: Suitable for wave, reflow, vapor-phase soldering
- Environmental Resistance: Mechanical, climatic, and chemical stability
Buy the Buy Vishay RCC e3 Part Number RCC0603470KFKEA Online
Discover the high-reliability, medium power thick film resistor series designed for automotive, industrial, and telecommunications applications. With increased power ratings up to 0.25 W, operating voltages up to 200 V, and a broad resistance range from 1 Ω to 10 MΩ, these resistors excel in demanding environments. Manufactured with precision laser trimming on ceramic substrates and protected by a durable coating, they meet RoHS and AEC-Q200 standards for quality and reliability. Ideal for surface-mount assembly, they ensure consistent operation across wide temperature ranges from -55°C to +155°C, providing excellent long-term stability.
Order your Vishay Series RCC0603470KFKEA high-power thick film resistor today and ensure your industrial and automotive projects benefit from reliable performance.
Frequently Asked Questions
Where can I buy Vishay RCC0603470KFKEA?
You can click on the BUY or RFQ button to purchase RCC0603470KFKEA from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part RCC0603470KFKEA?
You can download the RCC0603470KFKEA datasheet or visit the Vishay website for support.
Who is the manufacturer of RCC0603470KFKEA?
Vishay
