Vishay RCC12064K70FKEA Thick Film Resistor
The product is a medium power thick film chip resistor series designed for high reliability and performance in automotive, industrial, medical, and telecommunications applications. It features increased power rating and operating voltage compared to standard chip resistors, with resistance ranges from 1 to 10 MΩ and tolerances of ±5%. Constructed on high-grade ceramic substrates with laser trimming for precise values, these resistors are suitable for automatic SMT assembly, reflow, and vapor phase soldering. They are RoHS compliant with protective coatings, offering electrical, mechanical, and climatic durability, and have been qualified according to AEC-Q200 standards for automotive reliability.
Vishay RCC12064K70FKEA Thick Film Resistor Specifications:
- Series: RCC e3
- Sizes: RCC0402, RCC0603, RCC0805, RCC1206
- Resistance Range: 1 to 10 MΩ
- Resistance Tolerance: ±5%
- Temperature Coefficient: +200 ppm/K or +100 ppm/K depending on size
- Rated Dissipation: 0.125 W (RCC0402), 0.2 W (RCC0603), 0.25 W (RCC0805), 0.5 W (RCC1206)
- Maximum Operating Voltage: 75V (RCC0402), 150V (RCC0603), 200V (RCC0805), 200V (RCC1206)
- Permissible Film Temperature: 155°C
- Operating Temperature Range: -55°C to +155°C
- Resistance Change at 1000h: <3.0% (lower voltage), <1.0% (higher voltage)
- Endurance: 1000h at 70°C with low resistance drift
- Construction: Ceramic substrate with cermet film, laser trimming, protective coating, tin-plated nickel terminations
- Qualification: AEC-Q200 qualified for automotive reliability
- Packaging: Tape and reel options for automatic assembly, various quantities, RoHS-compliant, lead-free tin plating

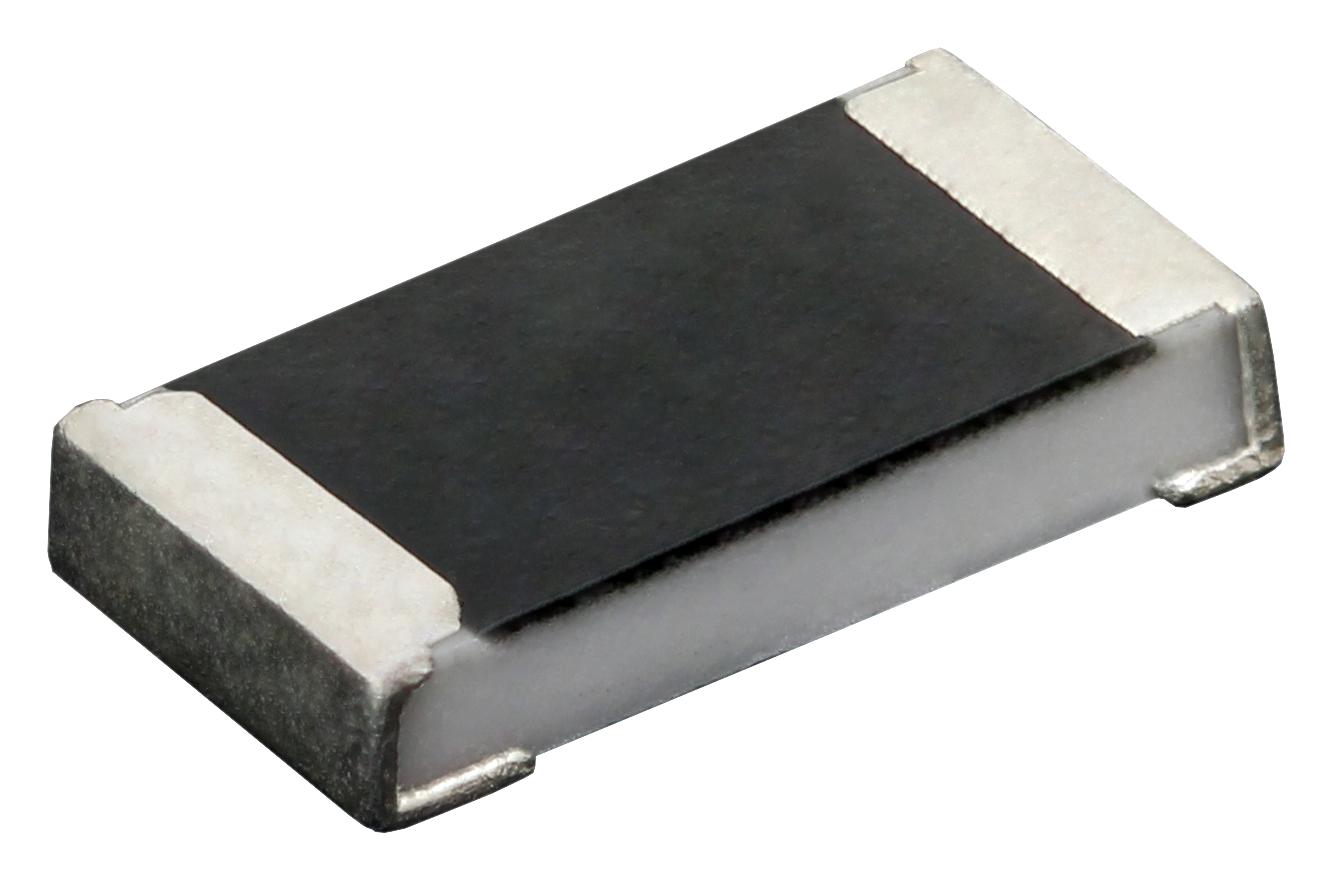

Buy the Buy Vishay RCC1206 Part Number RCC12064K70FKEA Online
Enhance your electronic assemblies with the Vishay Series1206 RCC12064K70FKEA thick film resistor, optimized for high power, precise resistance, and automotive standards. Carefully manufactured on high-quality ceramic substrates with laser trimming, these resistors support automatic SMT processes including reflow and vapor phase soldering. RoHS-compliant and featuring protective coatings with tin-plated nickel terminations, they provide excellent mechanical, electrical, and climatic durability. Ideal for industrial, medical, and telecommunication applications, order online now for dependable performance and quick delivery.
Order your Vishay Series1206 RCC12064K70FKEA today and ensure your electronic projects benefit from high power, stability, and automotive qualification.
Frequently Asked Questions
Where can I buy Vishay RCC12064K70FKEA?
You can click on the BUY or RFQ button to purchase RCC12064K70FKEA from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part RCC12064K70FKEA?
You can download the RCC12064K70FKEA datasheet or visit the Vishay website for support.
Who is the manufacturer of RCC12064K70FKEA?
Vishay
