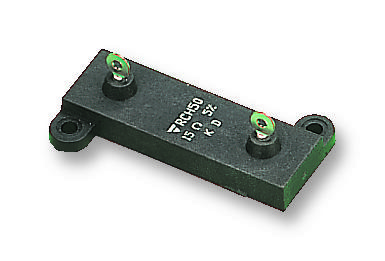

Vishay RCH50S10001JS06 Power Resistor
Vishay Sfernice RCH series power resistors are high-performance, cermet thick film technology components designed for efficient mounting onto heatsinks. Ranging from 5W to 50W, these resistors feature high overload capabilities up to 2500 Vams, low thermal resistance from 0.8 °C/W, and excellent insulation resistance of 10 MΩ. Suitable for high-frequency and cut-out circuits, they have a broad resistance range from 0.24 Ω to 1 MΩ, and are RoHS compliant. Designed for industrial applications, these resistors offer reliable thermal dissipation, easy mounting, and durable performance under various environmental conditions.
Vishay RCH50S10001JS06 Power Resistor Specifications:
- Power Rating: 5 W to 50 W
- Resistance Range: 0.24 Ω to 1 MΩ
- Thermal Resistance: 0.8 °C/W (RCH50 model)
- Overload Voltage: up to 2500 Vams
- Insulation Resistance: 10 MΩ
- Operating Temperature: -55 °C to +125 °C
- Physical Dimensions: length from 16.6 mm to 47.8 mm, height from 16.4 mm to 29.5 mm
- Connection Types: round lead or flat with hole
- Tolerances: ±5%, ±2%, ±1%
- RoHS Compliant
- Material: Cermet thick film technology
- Mounting: onto heatsink with specified torque
- Maximum Power Dissipation: 5 W to 50 W mounted
- Dielectric Strength: 2000 V
- Climatic Category: 55/125/56
- Temperature Coefficient: about 150 ppm/°C
Buy the Vishay RCH50 U–2013 Reliable Power Resistors for Industrial Applications
Discover the high-performance power resistors designed for industrial applications. Vishay RCH series resistors offer high wattage, overload capacity, thermal efficiency, and easy mounting. They are suitable for high-frequency circuits, cut-out functions, and demanding thermal environments. Made with cermet thick film technology, these resistors feature low thermal resistance, robust insulation, RoHS compliance, and broad resistance ranges from 0.24 Ω to 1 MΩ. Order online now for dependable performance and optimum thermal dissipation in your critical electronic systems.
Order your Vishay Series RCH50 power resistor today and ensure your industrial projects benefit from durable and reliable thermal management.
